Specifications
Brand Name :
Shenghong
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Model Number :
SH16-314-1
Type :
Arc Corrugated Roof roll forming machine
Material of Sheet: :
Colored Steel
Forming Roller Stations :
11-17 Stations
Forming Speed: :
15 meters / min
Description

Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed ​

INTRODUCTION

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands and etc.

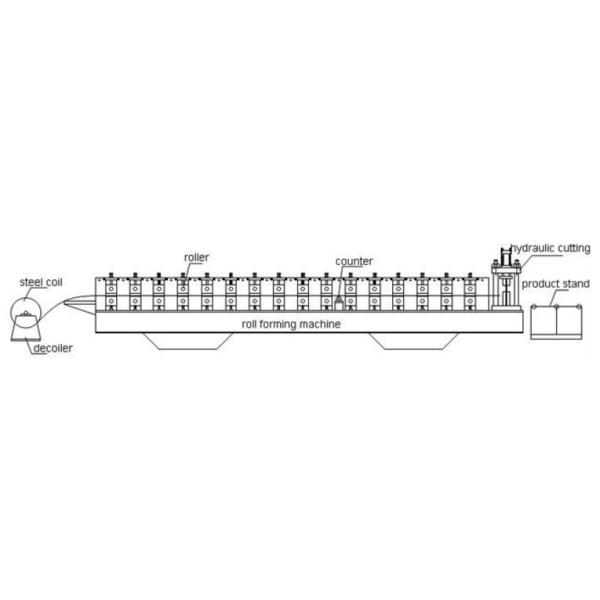

WORKING STEPS

Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed

De-coiler the processing material - Guiding system - Roll forming system - Measure length - Hydraulic cutting - Collecting

Parameters

A. General

Machine's parts High strength H350/H400 steel
Material Thickness 0.2-0.6 mm

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.
Cutting

Automatically stop and cutting when it comes to the set

length.

B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.
Forming Steps 11-17, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

 Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.

C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.
Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

 Omron, made in Japan.
It features with high accuracy and stability.


One roll forming machine only can produce one profile.
We can manufacture as per customer provided drawings with specification or real objects of sectional materials, custom roll forming machine is welcome. The following is some corrugated panel roofs profiles for your reference.
Arc Corrugated Metal Roofing Roll Forming Machine Beautiful High Speed

More information about steel roof panel profiles, Pls contact with us!
