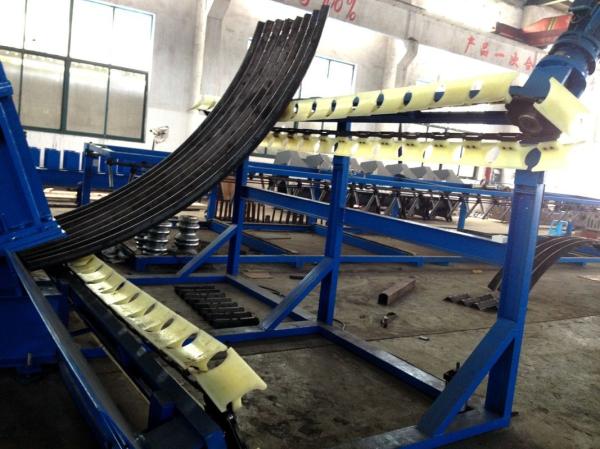

Electric 7.5 Kw Forming Power Stud Roll Forming Machine Auto Working Mode
Electric 7.5 Kw Forming Power Stud Roll Forming Machine Auto Working Mode
Electric 7.5 Kw Forming Power Stud Roll Forming Machine Auto Working Mode
Electric 7.5 Kw Forming Power Stud Roll Forming Machine Auto Working Mode
Specifications
Brand Name :
Shenghong
Model Number :
SWL15122-180
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Material type :
k span roll forming machine
Type :
Auto working mode
Power Source :
Electric
Proper span :
≤22m
forming power :
7.5 kw
bending power :
4 kw
cutting power :
3.0kw
conical power :
2.2kw
Description

7.5 Kw Forming Power K Span Roll Forming Machine Auto Working Mode

Main technical parameters

1. Size: 8900mm × 2250mm × 2300mm

2. Total Weight: about 13000KG

3. Main Motor Power: 16.7KW

4. forming power is 7.5kw ; bending power is 4.0kw;

5. cutting power is 3.0kw; conical power is 2.2kw

6. Working Speed:

7. Straight sheet: 15m/min; Arch sheet: 13m/min ; Sewing: 6m/min

8. Material of rollers: 45# steel, quenched HRC 58-62

9. Material of roller shafts: 45# steel, adjusted

10. Material of cutting blade: Cr12 steel

11. Step of rollers: 15 steps

12. Feeding Width: 600mm

13. Effective Width: 305mm

14. The depth of the groove: 140mm

15. Thickness of the coil: 0.6-1.5mm

16. Operating factor of the panel: 51%

17. Proper span: ≤22m

Main Part

1. Manual decoiler

2. Main forming machine

3. Curving machine

4. Seam machine


Electric 7.5 Kw Forming Power Stud Roll Forming Machine Auto Working Mode
