Specifications
Brand Name :
Shenghong
Model Number :
SWL151223-120
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Material type :
Wall Panel Roll Forming Machine
Service :
Custom to made
After-sale service :
Lifetime technical Support
Power Source :
Electric
Description

Good Perfomance Wall Panel Roll Forming Machine Single Row Chain

Main technical parameters:

1. Passive leak: Manual up tight, passive leak
2. Leak rack load: 4T
3. Rack: The 250 channel steel welding
4. Forming Machine-driven feeding frame Type: Side roller

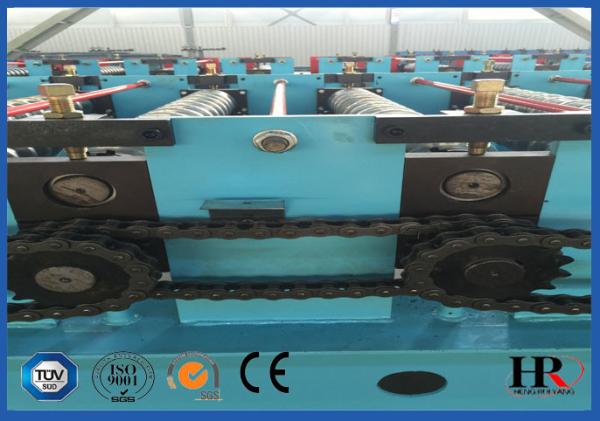

5. Forming Machine Type: Wall-type chain drive

6. Shaft Diameter: 70 mm
7. Chain: 0.6-inch single-row
8. Forming Motor Power: 3K reducer
9. Forming Machine speed: 10m/min
10. Forming Machine Road Number: 9

11. Roll Material: High quality steel Duan playing pieces
12. Hydraulic station motor: 3kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: Hydraulic shear
15. Scissors film forming material: Cr12

16. Shearing blade Heat treatment: HRC58 ° -60 °
17. Rolling thickness: 0.3-0.8 mm
18. Material Expand Width: 1000mm
19. Length Length Accuracy: ± 2mm
20. The computer use of PLC, Taiwan Delta
21. Computer Operator

Machine Features
  1. Product Description
  2. Nice appearence
  3. Easy control
  4. High efficiency
  5. Good quality
  6. Low noise

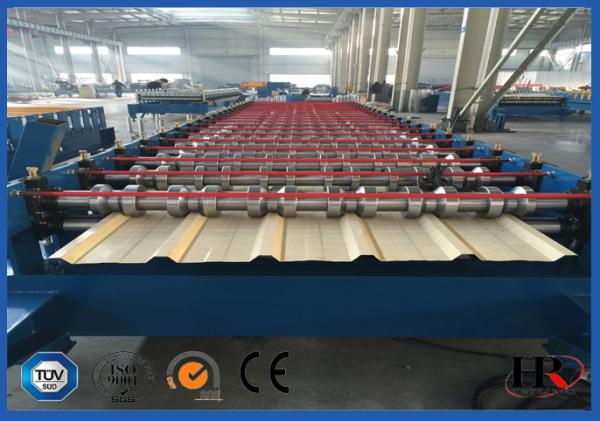

Our roof/wall forming machine:

Cover width 900(mm)
Coil width 1000(mm)
Wave height 10(mm)
Wave length 150(mm)
Usage Roof and wall

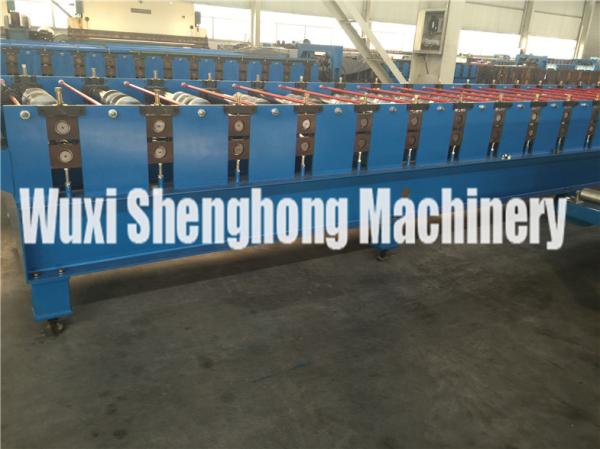

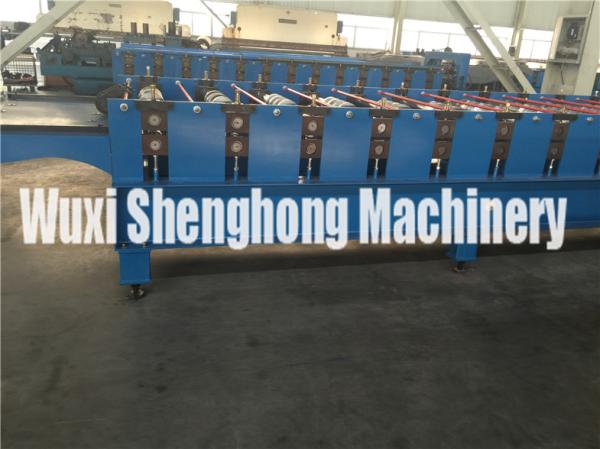

Machinery Photos

Good Perfomance Wall Panel Roll Forming Machine Single Row Chain

Workshop Show

Good Perfomance Wall Panel Roll Forming Machine Single Row Chain

We care about your concern
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping
We care about the "special"
Can not find the machine you need? Why not customize it!
We have: many years experience in making roll forming machine
15 years experience engineers
