High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
Specifications
Brand Name :
Shenghong
Model Number :
SWL151222-112
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Machine type :
Roof Tile Former
Feature :
New-generational High Speed, Whole life technical support
Service :
customization available
Thickness of raw material :
≤ 0.65
Raw material :
Depends on profile
More :
auto-stacker system
Description

High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former

1,Brief introduction

This series high speed tile forming machine is a new-generational type with high speed and high-efficient, including decoiler system, sheet guiding system, roll forming system, pressing system, cutting system, auto-stacker system, hydraulic system, controlling system etc.

The whole machine adopts industrial control computer and it has a high automation. We can customize machine according to your requirement.

This series equipment is a national torch plan projects, included in the national key new products. It has one invention patent, two new patents and won the China Building materials machinery industry well-known brands.

2,Technical parameter

No

Item

Unit

Parameter

Remark

1

Suitable Material

Type

Colored Steel Sheet; Aluminium Sheet.

According to customers requirement

Thickness

mm

≤ 0.65

Yield strength

Mpa

≤ 400

According to customers requirement on the material properties

Coil width

mm

≤1250

According to customers requirement on the different profile

Coil weight

T

5 or 8 or 10

Optional

2

Max.Froming Speed

m/min

≤ 6

3

Roller Material

Steel with chrome coated

4

Roller Driven Type

Independent Frame, Inner-Chain Transmission

5

Pitch Adjustment Range

mm

150 -400

Adjustable

6

Controller

Using PLC and Inverter Control System

7

Operation

Touch Screen+Button

8

Total Power

kW

11

According to the final technical designing


Our Advantages


We are professional in making roll forming machines since 2010. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 25 sets / month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Wuxi Shenghong is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.

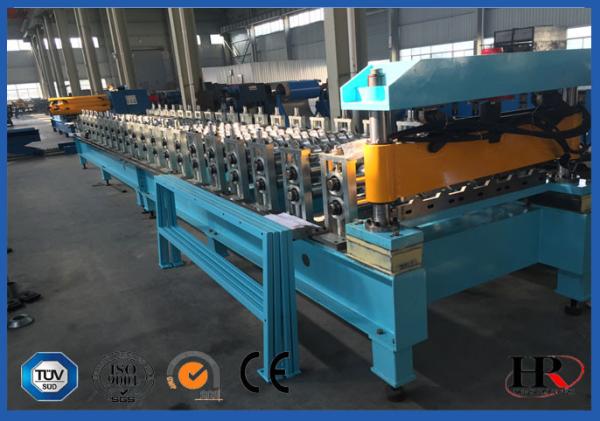

Machinery Photos

High Speed Aluminium Sheet Roof Tile Forming Machine / Cold Roll Former
