Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
Specifications
Brand Name :
Shenghong
Model Number :
SWL151221-87
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Type :
Ridge Tile Roll Forming Machine
Main power :
7.5 kw
Material type :
GI, GL, PPGI, PPGL
manual un-coiler :
3 tons or Automatic un-coiler
Control system :
Seimens PLC control with touch screen
Roll station :
10 stations or depends on profile
Description

Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap

Raw material

Material type GI,GL,PPGI,PPGL
Thickness of coil 0.3-0.8mm

Technical Parameters of Machine

Main power 7.5 KW
Dimension 6.5m * 1.0m * 1.2m
Forming speed 10-20 m/min(not including cutting)
Roller stations 14 sets (as profile drawing)
Control system Seimens PLC control with touch screen
Roller material GCr15,CNC machining,chromed
Transducer Yaskawa
Encoder Koyo
Other components Schneider
Structure Torri stands structure

Working process

A. Passive Decoiler..........................................................To load and uncoiling material

(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)

B. Feeding Applicator.......................................................Infeeder

C. Roll Forming Unit.........................................................To roll as profile

D. Hydraulic Cutting.........................................................To cut sheets as desired length

(We also have non-stop hydraulic cutting system.)

E. Output Table................................................................Support the finished products

Final Products ( Roof tiles ) Features


1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat, hail and gales ; 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.

After-sale Service


1. The warranty of the machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.


2. We offer technical support for the entire life of our machines.


3. We can send our technicians to install and train the workers in the clients' factories.

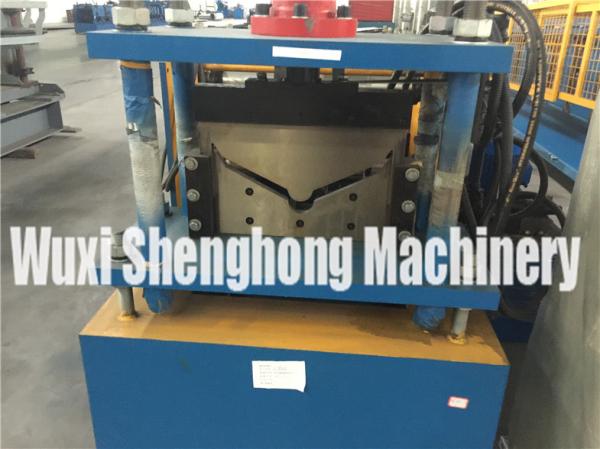

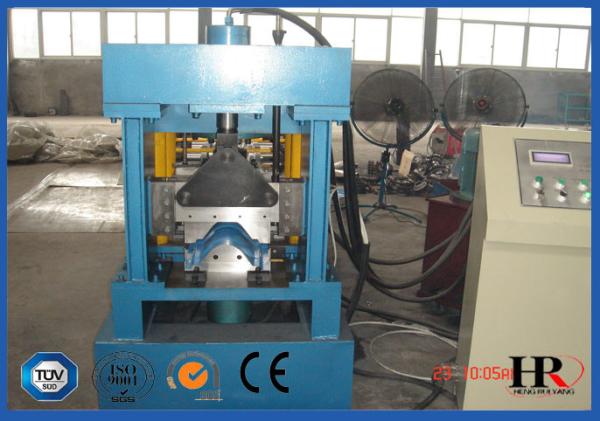

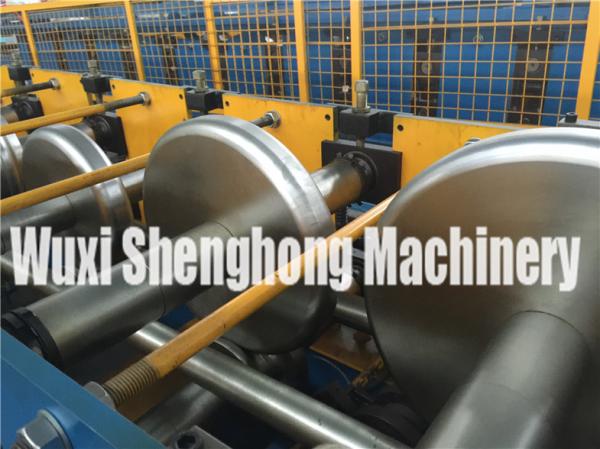

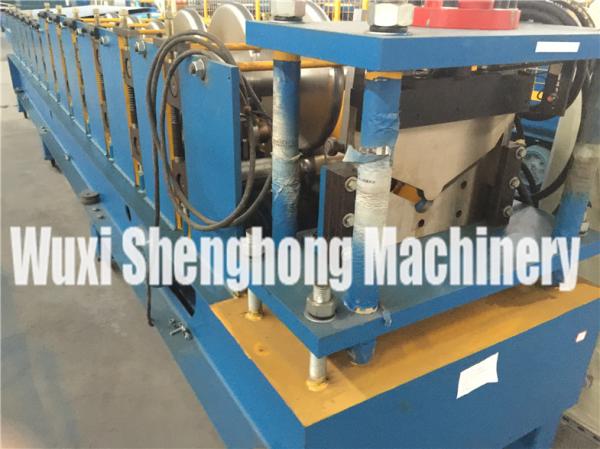

Machinery Photos

Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap

Workshop Show

Galvanized Metal Steel Roof Tile Roll Forming Machine For Ridge Cap
