Specifications
Brand Name :
Shenghong
Model Number :
SWL151224-141
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Type :
combo machine
After-sale service :
Lifetime technical Support
Operation type :
Touch screen+ Button
Suitable Material :
Q235 color steel sheet; 0.3-0.7mm
Forming Speed :
Max 30m/min
Description

20 KW Double Layer Roll Forming Machine For Roof Tiles , Wall Cladding

Features
As the customers’ requirement, the line can be designed as any profile, such as the roof, cladding.
Metal sheet Production Line Specification
Suitable Material: Thickness: 0.40-0.70mm, width as the design
Decoiler: 5T/8T/10T decoiler
Forming Station: 10-50 stations up to the profile
Forming Speed: Max 30m/min
Panel Run Out: supporter Out Table / 12m Auto Stacker
Total Power: About 20 KW up to final design
Total Installation Size: (30-60) X 4 m up to final design
Metal sheet Production Line Components

5T/8T/10T decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Cutting Device, Run Out Table/ 12m Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Unit, Safety Cover(optional)

Technical flow:

Decoiling→ guiding and feeding→ pre-slit→ roll forming→ cut to length→ run out table

20 KW Double Layer Roll Forming Machine For Roof Tiles , Wall Cladding

Introduction of Machine

Double layer Roofing Sheet Cold Roll Forming Machine is a combo machine for making many different types roofing panels. For example when you need to make two types roofing sheets, you have to buy two types machines. But one double layer machines, by one machine you can produce those two types. For example the first layer could be glazed tile roll forming machine and the second layer could be IBR or round wave roofing sheet.

Features of double layer roofing machine:

1. One machine could produce two types roofing sheets.
2. Save working space, save energy and save cost of machine.
3. Easy to use and easy to transportation.
4. If you need to add wheels to machine, you can put production aany place.
5. Two layer one PLC control system, one pair of motors, easy to maintain.
6. Working speed 25 meter per minute.
7. Material thickness could be from 0.2 to 1.2mm.
Note: But two layers cannot work at the same time. If you need to huge production, please buy single layer machine.

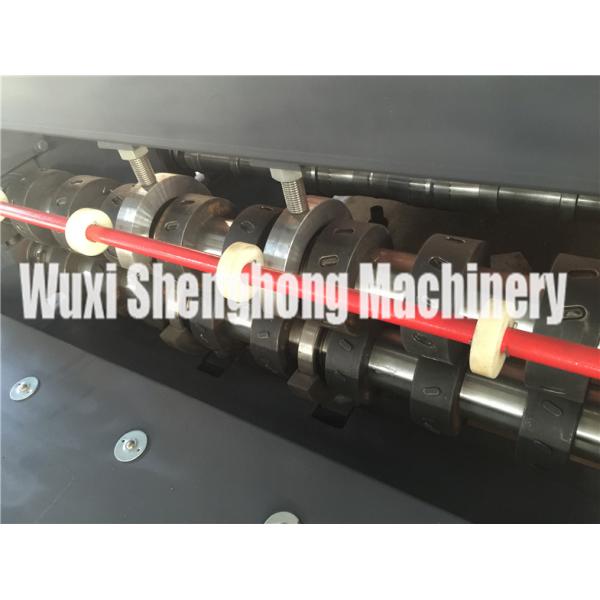

Machinery Photos

20 KW Double Layer Roll Forming Machine For Roof Tiles , Wall Cladding

Workshop Show

20 KW Double Layer Roll Forming Machine For Roof Tiles , Wall Cladding
