Specifications
Brand Name :
Shenghong
Model Number :
SWL151231-226
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Type :
Auto working mode
Frame thickness :
16mm
Drive mode :
Chain
Feature :
Aviation plug,remote controller,emergency stop button.
Description

Double Layer Corrugated Sheet Roll Forming Machine With Hydraulic Station

Electrical ontrol system

1. PLC:Japan Mitsubishi

2. Frequency inverter:American Emeron.

3. Touch screen:MCGS 10 inch big size.

4. Incoder:Japan Omron

5. Aviation plug,remote controller,emergency stop button.

Hydraulic cutting device

1. hydraulic station:1 set

2. with hydraulic station motor 3kw

3. hydraulic cutter

4. blade and mold material:GCR12 steel with quenched treated 60~62℃

5. cutting system:advanced hydraulic drive automatic cutting after forming no distorting.

Controlling device

1. screen:7 inch color touch screen

2. PLC:Japan Mitsubishi

3. automatic length measurement

4. automatic quality measurement

5. Computer is used to control length and quality.Machine will automatically cut to length and stop when required quality is achieved.

6. Length inaccuracy can be amended easily.

Machine components

1 automatic decoiler 1 set
2 feeding guiding device 1 set
3 leveling device 1 set
4 servo feeder device 1 set
5 punching machine 1 set
6 roll forming machine 1 set
7 servo track cutting device 1 set
8 computer control box 2 sets
9 products stand tables 3 sets
10 tools 1 suit

Basic information

Name

Shenghong

Quantity

Technical Description

1.Decoiler system

Cantilever type

automatic

decoiler

1set

Cantilever, hydraulic expanding, electrical motor actively

release the sheet and ultrasonic control.

2.Main forming

system

Guiding device

1set

1. Roller material:No.45 steel with surface hard chrome

painted.

2. Roller inner supporting structure type: guide column

3. Planetary gear speed reducer motor driving, the back/

forward rollers driven by chain,

part of upper/lower rollers driven by gear

4.Cutting blade material Cr12 quenched treatment

Roll forming

system

2set

Post-cutting

device

1set

3. Output system

Supporting

Table

1sets

For supporting the finished panel.

4. Hydraulic system

1set

Hydraulic station

5. Electric control system

1set

PLC Control, encoder automatic cutting in length

Operation stage: button

AC frequency for adjusting the speed

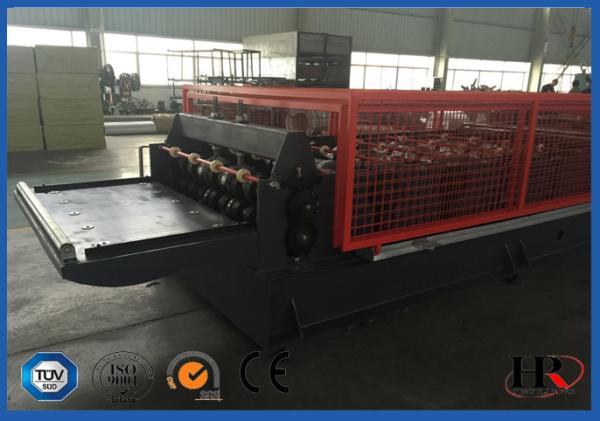

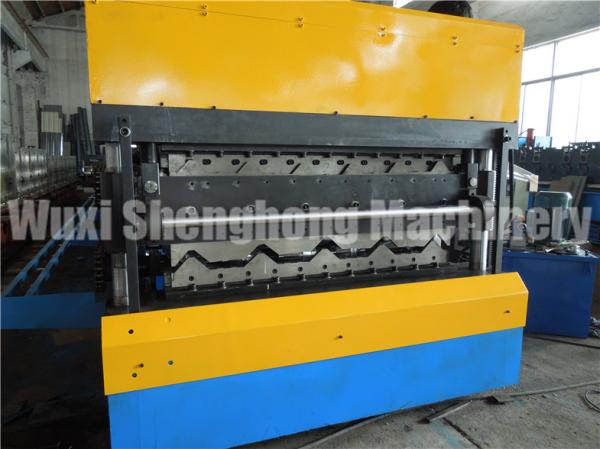

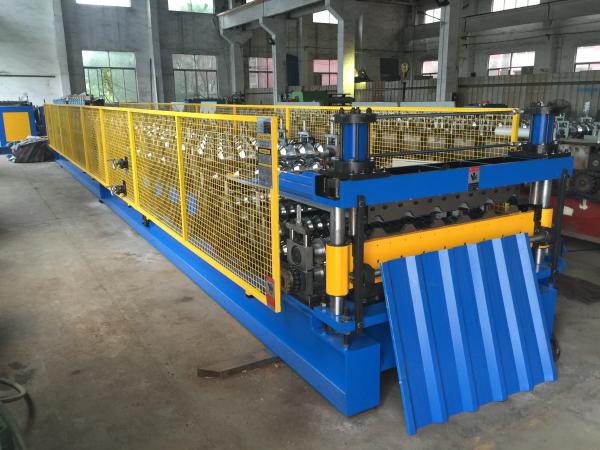

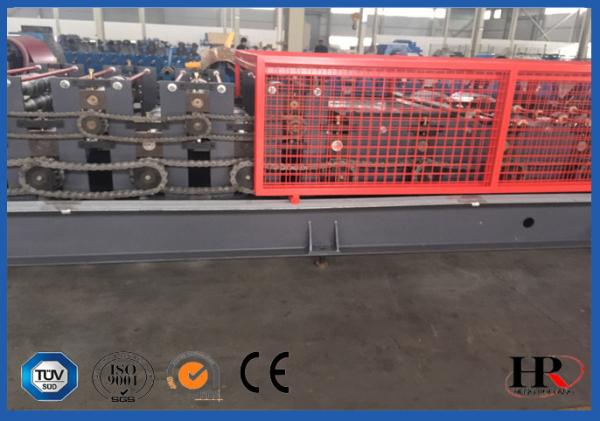

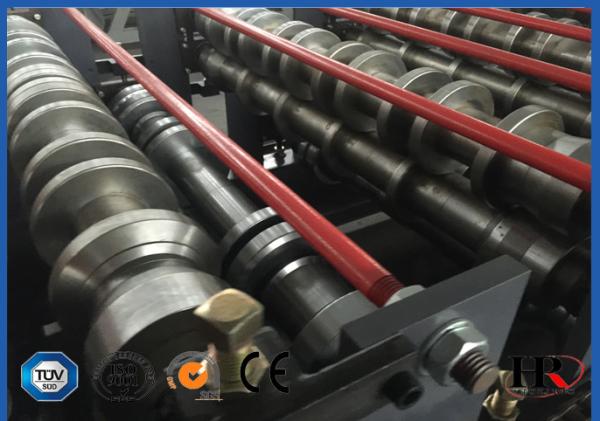

Machinery Photos

Double Layer Corrugated Sheet Roll Forming Machine With Hydraulic Station
