Specifications
Brand Name :
Shenghong
Model Number :
SWL151223-131
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Type :
Auto working mode
After-sale service :
Lifetime technical Support
Operation type :
Touch screen+ Button
Suitable Material :
Q235 color steel sheet;0.3-0.7mm
Description

Traditional Mould Type Double Layer Roll Forming Machine Auto Working Mode

Technical data of double layer roll forming machine

Suitable Material
Q235 color steel sheet;0.3-0.7mm
Working speed
About 20m/min
Power Requirement
Main motor power: 7.5 Kw(Depend on final design)
Hydraulic station power: 2.2 Kw(Depend on final design)
Material of forming rollers
No.45 steel, plated with chrome on surface.
Material of cutter
Cr12 mould steel with quench treatment, HRC58-60
Material of shaft
High quality 45# steel, Dia. is 72mm.
Roller grinder milling.
Shaft diameter
72mm
Controlling system
Mitsubishi PLC & converter
Total weight of machine
About 13000KGS
Machine's size
About 11.5m×1.8m× 1.5m (Depend on final design)
Shipping
1x40GP container can load one machine

Technical flow:

Decoiling→ guiding and feeding→ pre-slit→ roll forming→ cut to length→ run out table

Traditional Mould Type Double Layer Roll Forming Machine Auto Working Mode

Our Metal Roll Forming Machine’s advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

6. One machine can make two kinds of profile. Client’s profile available.

Introduction of Machine

Double layer Roofing Sheet Cold Roll Forming Machine is a combo machine for making many different types roofing panels. For example when you need to make two types roofing sheets, you have to buy two types machines. But one double layer machines, by one machine you can produce those two types. For example the first layer could be glazed tile roll forming machine and the second layer could be IBR or round wave roofing sheet.

Features of double layer roofing machine:

1. One machine could produce two types roofing sheets.
2. Save working space, save energy and save cost of machine.
3. Easy to use and easy to transportation.
4. If you need to add wheels to machine, you can put production aany place.
5. Two layer one PLC control system, one pair of motors, easy to maintain.
6. Working speed 25 meter per minute.
7. Material thickness could be from 0.2 to 1.2mm.
Note: But two layers cannot work at the same time. If you need to huge production, please buy single layer machine.

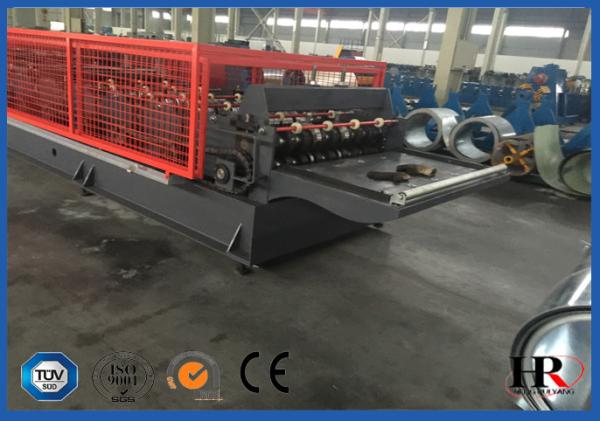

Machinery Photos
