Pre-painted Galvanized Sheet Double Layer Roll Forming Machine with Embossing Processing

1. Components for the sheet profiling machine

The roll forming machine includes manual uncoiler unit, sheet guiding equipment, roll forming system,

cutting equipment, hydraulic station, electric controlling system and run out supporting table.

Pre-painted Galvanized Sheet Double Layer Roll Forming Machine with Embossing Processing

2. Technical Parameters

Material Spec: Aluminum, aluzinc, galvanized and pre-painted galvanized steel sheet

Thickness: 0.3 mm to 0.7mm (perfect is 0.4mm-0.6mm)

Main motor power: 5.5 kw

Hydraulic station power: 5.5 kw

Feeding width: 1200mm

Cover width: 780mm

Coil stress: Q235 Mpa(33KSI); maximum stress yield is Q345Mpa (50KSI)

Producing Speed: 3~4 m/min. (including the speed of step pressing and cutting)

Cutting Tolerance: ≤±2.5mm ( length≤ 5000mm) ; ≤±3mm ( 5000mm < length ≤ 10000mm)

Manual Uncoiler: max. capacity: 5000kgs

Stands number: at least 13 stands (13 groups of rollers)

Type of cutting: Roll-formed and length-set cutting

3. Material of Main Equipments

Roller Material: high grade No.45 forged steel, Coating with hard chrome.

Active Shaft Material: high grade No.45 carbon wrought steel, improved the integrated mechanic feature of the shaft.

Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.

Other Elements: from famous suppliers in China.

Cutter Blade: Cr12 mould steel with quenched treatment.

4. Process sketch

Uncoiling the sheet --- Infeed guiding --- Roll forming --- Step pressing --- Measure length --- Cutting the panel ---

Panels to the supporter (option: automatic stacker).

Further Information

  • Production Capacity: 10 ~12m /minute
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Wuxi Shenghong Machinery
  • Power(W): 5.5KW
  • Voltage: as per custmer's request
  • Dimension(L*W*H): 9m*1.5m*1.5m
  • Weight: 8 ~10tons
  • Certification: CE, ISO9001:2008
  • Warranty: 1 year
  • Condition: New
  • Type: Tile Forming Machine
  • Tile Type: steel/ aluminium
  • Use: Roof
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name 1: metal roll forming machine
  • Name 2: double layer metal roll forming machine
  • Name 3: roll forming machine metal

Machinery Shows

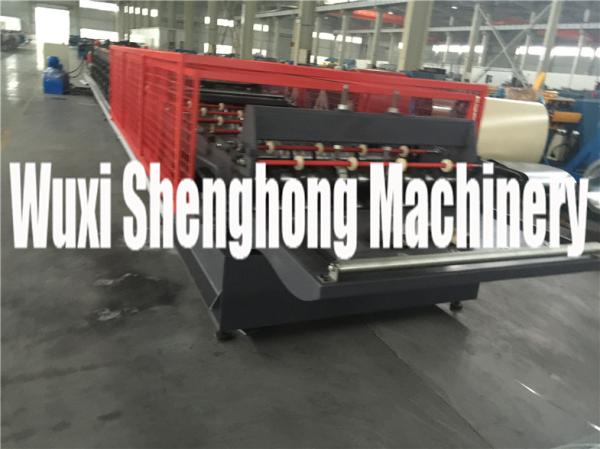

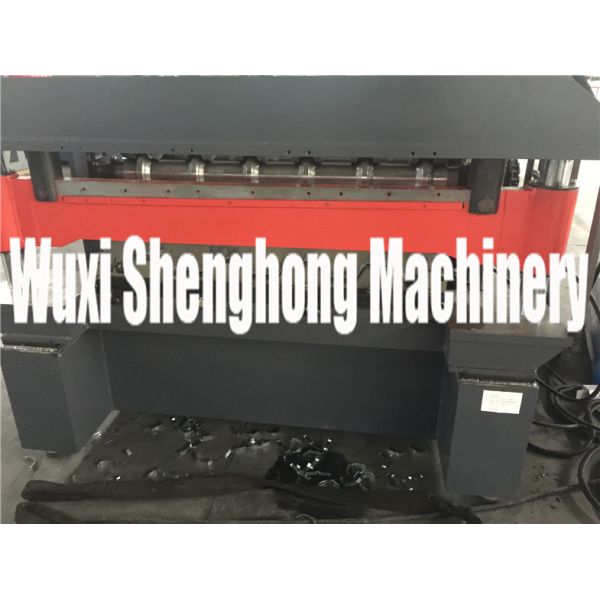

Pre-painted Galvanized Sheet Double Layer Roll Forming Machine with Embossing ProcessingPre-painted Galvanized Sheet Double Layer Roll Forming Machine with Embossing Processing
