Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
Specifications
Brand Name :
Shenghong
Model Number :
Roof Tile SWL151211-45
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Advantage :
High-solid forming stand guarantees
Quantity of Stands :
about 15 groups
Passive Uncoiler :
Max. Capacity: 5000kgs
Type of Cutting :
Roll-formed and length-set cutting
Total Weight :
About 9500kg
Voltage :
380V 3 phase 60Hz
Description

Colored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil

Component of Shaping Machine
colored steel tile forming machine consists of the following : uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table

Products Feature
1. A stylish and attractive design,giving the apperance of a traditional roof tile.
2. Resistant to frost,heat,hail and gales : 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.

Self-locked Roof Series Roofing Tile Forming Machine Features


1. Precise forming.
2. High-solid forming stand guarantees the good and uniform quality of final products
3. The operation automatically minimizes the tolerance of cutting length.

Technical Parameters

Material Spec
Thickness of Coil Sheet
Coil Width
Working Speed
Power Requirement
Hydraulic Station Power
Passive Uncoiler
Quantity of Stands:
Controlling System
Type of Cutting
Machine Dimension
Total Weight
Voltage: 		: Colored and galvanized steel sheet at yield stress 33KSI
: 0.5 --0.6 mm
: 1000mm
: 2.0 ～ 3.0 m/min. (step distance at 380mm,)
: Main motor power: 7.5kw
: 5.5Kw
: Max. Capacity: 5000kgs
: About 15 groups
: PLC
: Roll-formed and length-set cutting
: About 18500×1500×1400mm
: About 9500kg
: 380V 3 phase 60Hz or to the buyer's requirement

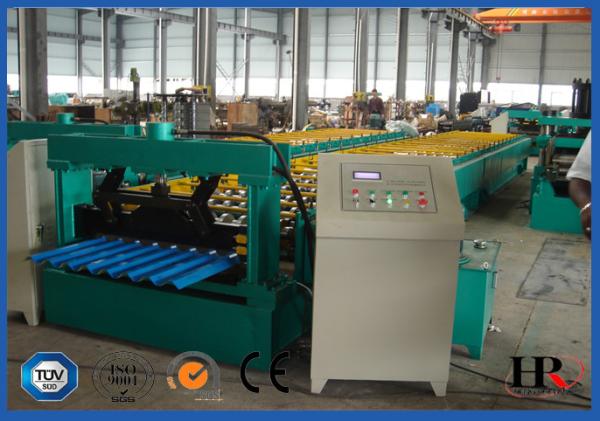

Machinery Shows

Colored Steel Self-locked Roofing Tile Machine with 0.6m Width CoilColored Steel Self-locked Roofing Tile Machine with 0.6m Width Coil
