PLC Control Metal Roofing Ridge Tile Roll Forming Machine for Industrial

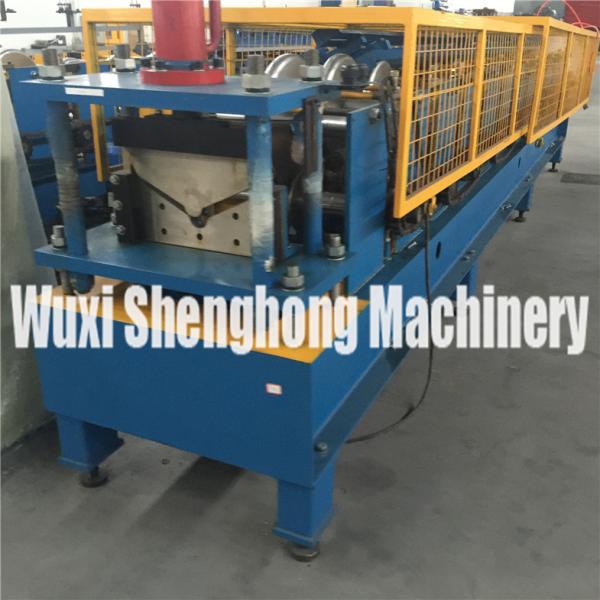

Metal Roofing Ridge Cap Roll Forming Machine Introduction

The cap ridge roll forming machine is to produce angel titles saving human resources and lower labor cost. This equipment is made up of automatic discharge table, feed leading table, and main forming machine, cutting device, hydraulic station and computer control system. Especially, the Optional system is normal uncoiler and hydraulic uncoiler.

This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on. It is producted continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.

The roof ridge cap roll forming machine can form metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this machine, the surface will be smooth and beautiful without any scratch on surface.

The main detail specification as follows

Material thickness: 0.4-0.8 mm
Working speed: 12-30 m / min
Roll station: 10 stations or depends on profile
Main power: 5.5 KW
Hydraulic power: 3KW
Control system: PLC Panasonic
Drive: by chain or gear box

Final Products ( Roof tiles ) Features

1. A stylish and attractive design, giving the apperance of a traditional roof tile.
2. Resistant to frost, heat, hail and gales ; 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.

Components and Function

Coil Feeding Equipment Consists of one uncoiler with capacity of 3000kgs and its base. The mandrel can expand or shrink. With separate button to make the mandrel roll.

Guiding Equipment Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.

Roll forming system The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers with quenched treatment after being machined by the exact machining tool.

Hydraulic Station Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

PLC Control Panel Main parts imported from Mitsubishi. The operation is easy and steady and can be choose operation by manual or automatically.

Working Flow

Decoiling the Sheet—→Sheet Guiding—→Film Covering—→Roll Forming—→Measure Lengh —→ Cutting the Panel—→Panels to the Supporter.
