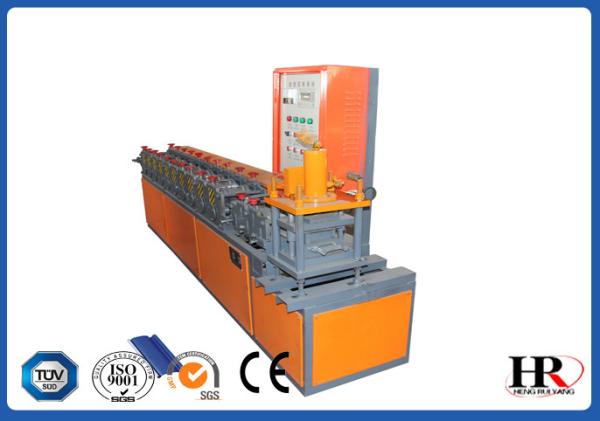

Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine
Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine
Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine
Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine
Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine
Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine
Specifications
Brand Name :
Shenghong
Model Number :
SWL151224-159
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Total Weight :
depend on profile
Material of shafts :
40 Cr
PLC Brand :
Delta, Mitsubishi,Siemens,Panasonic
Operating language :
Chinese, English, Russian
Description

Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine

Advantages of Insulated rolling shutter door and window covering slats


Insulated rolling shutter door and window covering that have been widely used in Europe for over 100 years.

They offer energy savings, privacy and security, while enhancing the value and beauty of the home. Although insulated rolling shutters are associated with security and sun control.

they can also decrease dust, noise and sun damage to furniture, draperies and carpets.


Rolling Shutter Slat Roll Forming Machine (Polyurethane Filled) components


Our rolling shutters are custom built for each application with many options for your exact needs.
Rolling Shutter Slats Roll Forming Machine for producing single layer products is consisted of de-coiler, main roll-forming machine, straightening part, PU foam-filled device, cut-to-length tracing cutter, run-out table, etc.


Polyurethane Rolling Shutter Slats Roll Forming machine main parameters

Line structure

Portal-type frame style, 45# steel

Forming Roller Stations:

35 Stations

Forming Roller shaft:

Φ38mm

Forming rollers

GCr15, Quenching, hardness HRC56-62º

Forming Speed:

0-7m/min

Main motor:

7.5kw

Material of Sheet:

σs≤260Mpa

Feeding material thickness:

0.3 to 0.5 mm;

Cutting mode:

Automatic cut-to-length control

Insulated Roller shutter production with foam-filled slats


This roll forming machine is for producing aluminum shutter door & window slat with foam-filled, Our Roll-forming lines complete with the tooling suitable to produce the foamed rolling shutter profiles in different sizes,. inline foaming, punching and cutting to length operations. Lines for high density or low density foamed profiles.

Workshop Show

Insulated Polyurethane foam-filled rolling shutter door Roll forming Machine
