Specifications
Brand Name :
Shenghong
Model Number :
SH160912-03
Certification :
CE ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Controls :
Mitsubishi transducers, Schneider Electric, PLC
Roller :
Antirust Treatment
Runout table :
1 unit
Certificate :
CE, ISO9001:2008, GMC, Soncap, AAA credit
PLC control board :
1 unit
Hydraulic station :
1 unit
Description

Steel sheet Roll Forming Machine For producing Corrugated Roof / wall Panel

Machine Components of Steel Tile Roll Forming Machine:

  • Decoiler 1 unit
  • Feeding 1 unit
  • Film covering 1 unit
  • Main roll forming machine with cutting 1 unit
  • Hydraulic station: 1 unit
  • PLC control board: 1 unit
  • Runout table: 1 unit

Operation and Maintenance:


1. Sheet metal roll forming machines are totally controlled by PLC. Thus it is very easy to operate. What the user only needs to do is inputting related production data, such as the number of products, length and punching dimension, etc;


2. If users want to adjust the machine or something else, they have to stop the roof panel rolling machine first before carrying out relevant operation;


3. Regular lubrication for chain wheel, bearing and speed reducer of the sheet metal roll forming machine should be conducted carefully. And the forming rollers should be kept clean.

Main Technical Specification of Steel Tile Roll Forming Machine:

  • Material: GI, PPGI
  • Material thickness: 0.3-0.7mm
  • Material width: depend on profile
  • Decoiler: manual passive decoiler ( customer can choose hydraulic decoiler )
  • Weight capacity of decoiler: 5 Ton
  • Forming Station: 13-18stations ( depend on profile )
  • Drive: 1.2' chain transmission
  • Main forming power of steel tile roll forming machine: 5.5KW
  • Hydraulic power: 2.2KW
  • Roller material: 45# forge steel , polished and coated with 0.05mm hard chrome
  • Principal axis diameter: 75mm ( depend on profile )
  • PLC: Panasonic
  • Cutting blade material: Cr12
  • Table: simple non-power table

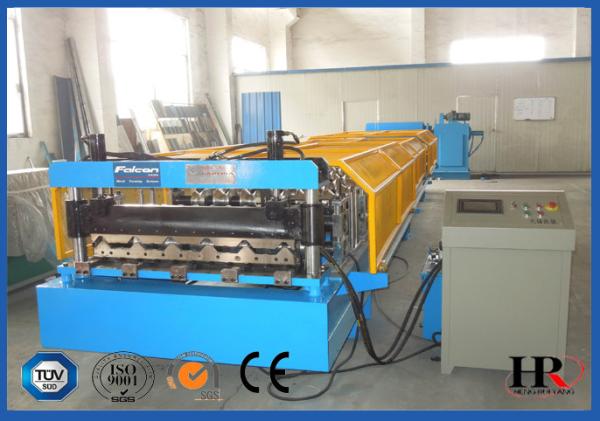

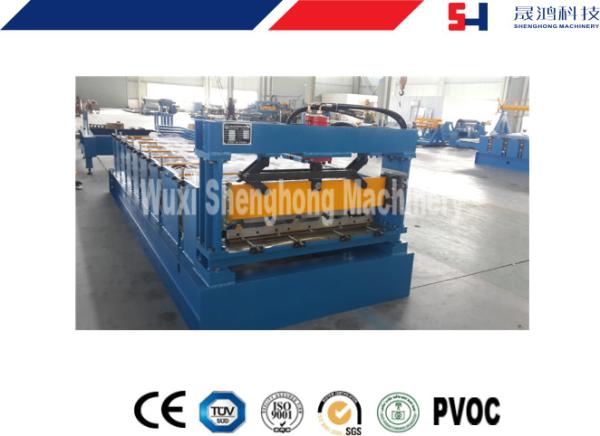

Machine show

Steel Sheet Roll Forming Machine For Corrugated Roof / Wall Panel Producing
