65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing
Specifications
Brand Name :
Shenghong
Model Number :
SH16-06-05-27
Certification :
CE/ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Effective Width :
300mm,400mm,500mm
Voltage :
customized
Production line speed :
8-14m/min
Power :
7.5KW+2kw
Material Width :
470mm,575mm,680mm
Description

65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing

Product Description:

Main Technic Data:

1. Dimension 5800*1600*1400mm
2. Weight 7000KGS
3. Motor Power 7.5KW*2 sets
4. Hydraulic Power 2.2KW
5. Voltage 380V/50HZ/3PH
6. Forming Steps 13
7. Forming Speed 8-14m/min
8. Effective Width 300mm,400mm,500mm
9. Material of Width 470mm,575mm,680mm
10. Material of AL-Mg-Mn,Galvanized Sheet Thickness 0.4-1.0mm
11. Material of Colored Prepainted Sheet Thickness 0.5-0.8mm
12. Material for All Roller high grade no.45 forged steel,plated hard chrome and polished the rollers

Main Accessories:

(1) Main Standing Seam Roof Panel Machine;

(2) 5 Tons Manual Decoiler;

(3) Hydraulic System;

(4) PLC Computer Controlling System with touch screen;

(5) Device for making taper standing seam roofing;

(6) Hydraulic Forming Cutter;

(7) Run out table;

(8)Manual Seamer;

(9) Tools;

Main Usage:

1. One machine can produce the straight standing seam roofing 300mm,400mm,500mm, and tapered standing seam roofings

2. Can automatically product variable width of roofing from 300mm to 500mm;

3. Widely use in the large project such as:railway station,airport , gymnasium etc.

4. Can product trapezoid roofing and straight roofing.

♦ Feature: Can be packed and worked in one 20'GP or 40'GP shipping container, and , so can it saves much time, room and cost. Also can design and make the machine according to your demand.

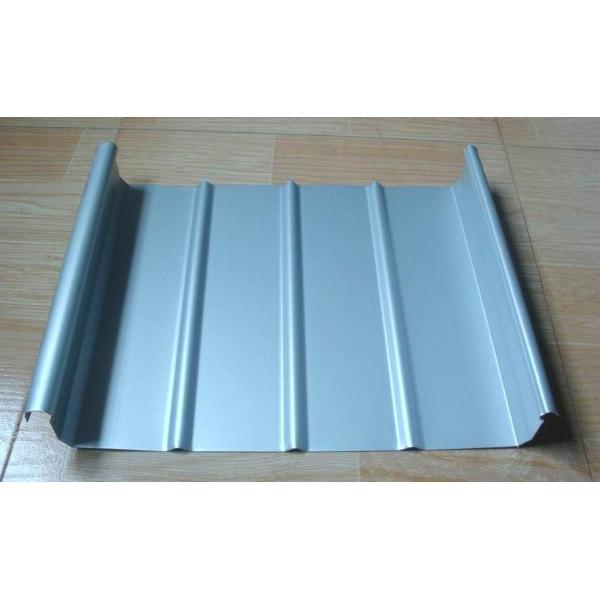

The sample plate for curving machine:

65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing

65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing


Packaging & Shipping

65-300-400-500 Cold Roll Forming Machine For Standing Seam Roofing

Advantages

1.We are factory and located in Shanghai,China,offer best quality machines

2. Customers Design ,Size,Color&Logo are accepted.

3. With20 years professional manufacture experience

4. Prompt Delivery&Competitive Price

5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.
