Specifications
Brand Name :
Shenghong
Model Number :
SWL151222-95
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Max. Width :
1250 mm
Panel width :
950-1000mm
Feature :
efficent, Whole life technical support
Pressure for foaming :
150-200 bar
PU forming density :
40 kg / m3
Working height :
1150 mm (height of panel coming out)
Description

Continuous High Speed Sandwich Panel Production Line Have Exported to 20 Countries

Quick Details

1. With ISO,SGS,BV and CE certificate
2. 1 year quality warranty
3. Export to more than 20 countries
4. Technician can be sent to your factory to install the machine and train your workers
Get Free
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
PU Sandwich Panel Line
Technical parameters
Item Specification
Raw Material Type Color steel coil
Thickness(mm) 0.4-0.7 mm
Yield strength(mpa) 235-345
Max. Width 1250
Sandwich Panel Panel width 950-1000mm (according to profile requirement)
Mini thickness 40mm (corrugated sandwich panel)
50mm (wall panel)
Max. Thickness 150mm (corrugated sandwich panel)
200mm (wall panel)
Min. cutting length 3 m
Max. Stacking length 15m
Working height 1150mm (height of panel coming out)
PU forming density ABOUT 40 kg/m3
Pressure for foaming 150-200 bar
Effective length of double belt conveyor 23 m
Roller material 45# steel , coated with Chrome
Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min) 3-7m / min ( adjustable )
Speed adjusting mode Misubishi frequency transformer
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Nemicon Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Total power(kw) About 100KW

Components
QTY.
Hydraulic Uncoiller 2set
Platform for forming machine 1set
Roll Forming System 2set
Foaming system 1set
Double Belt Laminator 1set
Cutting System 1set
Stacking system 1set

FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

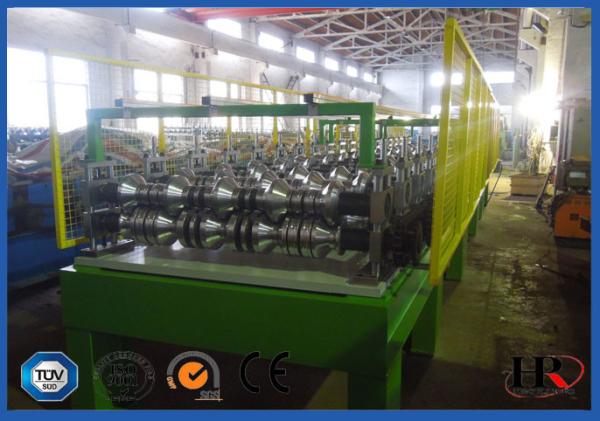

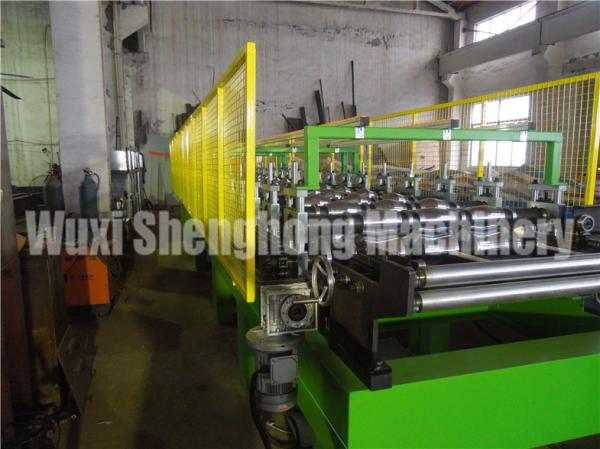

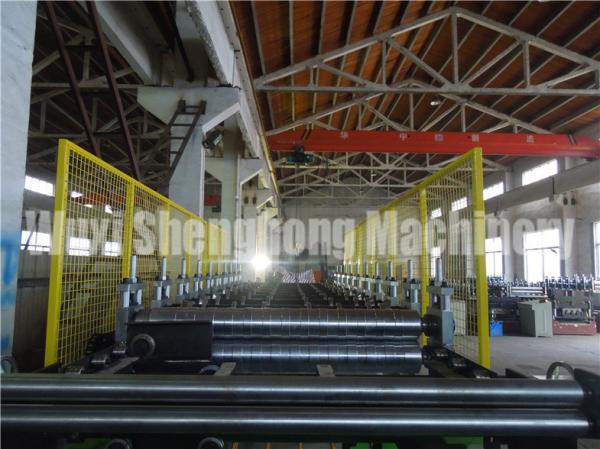

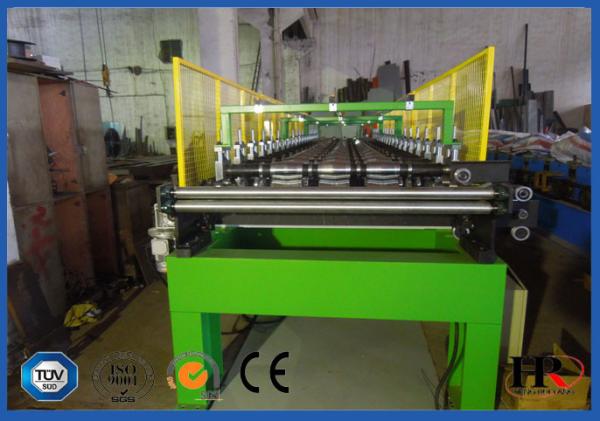

Machinery Photos
