Metal Roof Roll Forming Machine Bemo Standing Roll Forming Machine with color customized
Metal Roof Roll Forming Machine Bemo Standing Roll Forming Machine with color customized
Metal Roof Roll Forming Machine Bemo Standing Roll Forming Machine with color customized
Metal Roof Roll Forming Machine Bemo Standing Roll Forming Machine with color customized
Specifications
Brand Name :
DINGBO
Model Number :
DBRF
Certification :
CE ISO SGS
Place of Origin :
shanghai, China
MOQ :
1 Set
Price :
negotiation
Supply Ability :
20sets/month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Payment Terms :
L/C, T/T, Western Union
Suitable material :
PPGI,PPGL,GI,GL
Working speed :
10-15M/min
Roller stations :
16 roller station
Material thickness :
0.7-1.2mm for Color coated steel
Control system :
PLC with touch screen
Drive system :
Chain drive
Description

Bemo Standing Roll Forming Machine

Product Descriptions

1.) This equipment uses advanced automatic control software to realize information management.

2.) The automation control system adopts a highly integrated network, and the automation system has superior performance.

3.)Roll forming, solemn and elegant, beautiful and novel, smooth appearance, uniform ripple, high utilization rate, high strength, high production automation, low cost and durability.

4.)This machine also has the advantages of easy operation, maintenance, maintenance and debugging of machinery and mold replacement.

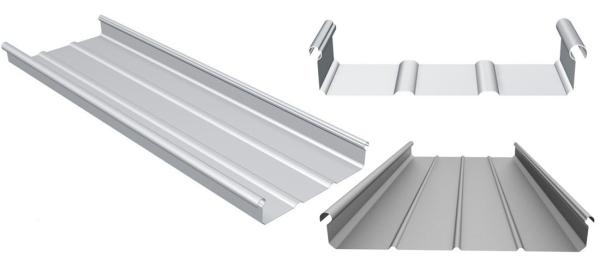

Version to design

Metal Roof Roll Forming Machine Bemo Standing Roll Forming Machine with color customized

Working Flow

Manual Decoiler -- Roll-forming -- Hydraulic-cutting -- Auto stacker

Metal Roof Roll Forming Machine Bemo Standing Roll Forming Machine with color customized

Product Paramet

Working speed About 10-15M/min
Main motor power 5.5 KW(Depend on final design)
Hydraulic station power 3KW(Depend on final design)
Cutter material Cr12 mould steel with quench treatment
Roller Material No. 45 forged steel with 0.05mm thickness chrome
Material of shaft High quality 45# steel, DIA is 76mm
Controlling system PLC system, Panasonic
Length measurement Encoder ( Omron )
Speed adjusting mode AC Frequency
Total weight About 8500KGS(Depends on final design)
Machine Size About 10*1.7*1.6m (Depends on final design)

Main Components

No. Name Qty
1 Manual Decoiler 1
2 Main roll forming machine 1
3 PLC Control box 1
4 Hydraulic station 1
5 Post cut 1
6 Output table 2

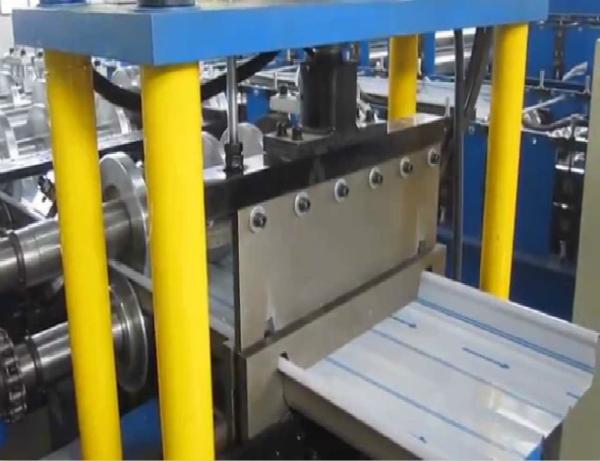

Pictures

1.When most homeowners begin thinking about a metal roof, all they can envision are the roofs they have seen on barns and commercial buildings. Those types of metal roofs typically have panels that run vertically up the roof.

2.These types of metal panel roofs are called “Standing Seam” because their prominent visual feature is the raised interlocking seam which joins one panel to the next. Often called “commercial roofing,” or “agricultural panel roofing,” or even “barn roofing,” these products do provide the great protection and durability for which metal is known.

3.The stainless fastening clips and screws ensure secure and lasting attachment with no chance for problems resulting from expansion and contraction. The trims used to complete roof have also been carefully designed for beauty and durability.

Metal Roof Roll Forming Machine Bemo Standing Roll Forming Machine with color customized
