Racking Sheet Metal Roll Forming Machines Adopts Track Cutting Technology
Racking Sheet Metal Roll Forming Machines Adopts Track Cutting Technology
Racking Sheet Metal Roll Forming Machines Adopts Track Cutting Technology
Racking Sheet Metal Roll Forming Machines Adopts Track Cutting Technology
Racking Sheet Metal Roll Forming Machines Adopts Track Cutting Technology
Racking Sheet Metal Roll Forming Machines Adopts Track Cutting Technology
Specifications
Brand Name :
Shenghong
Model Number :
SWL151231-232
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Forming speed :
Approx. 12 - 15 m /min
Controls :
Panasonic Controls
Material :
galvanized or pre-painted steel sheet
Electric Elements :
PLC control panel, transducer imported from Mitsubishi of Japan
Description

Racking Sheet Metal Roll Forming Machines Adopts Track Cutting Technology

General Description

  1. Racking roll forming machine is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding parts, fly shearing system, run-out table, electronic control system and hydraulic system.
  2. The machine adopts track cutting technology to ensure the machine capacity and gear box transmission and the rigidity and working strength can also be ensured.
  3. By using a rack roll forming machine, we can easily get the racks in large quantity in a short period of time.

Technical Specifications for Racking Roll Forming Machine

Raw material Item Parameter Remark
Material type hot rolled steel Special material shall be tested before finalization
Thickness 1.5-2mm Big range of thickness may cause forming dimension tolerance
Yield strength Q235 -
Production Profiling section As per customer's requirement The basic element for quotation
Machine material Roller material Gr12 -
Shaft material 40Cr -
Rolling station wall material QT470 -
Shearing blade material Cr12 -
Machine power requested Decoiller 1.1KW For three tons
Leveling 3KW -
Servo feeding 3KW -
Roll forming 37 KW -
Line speed Roll forming speed 10-15m/min -
Forming stations Quantity of rolling station 16 stands Cassette design is advised
Punching Punch Depend on hole size Interchangeable die
Transmission Gear box - -
Straightening Roller straightening 4 rollers -
Shearing fly shearing - Precision±1.5mm/6000mm
Product supporter Discharging table 6meters/9meters/11.8meters As per customer's requirement
Hydraulic system Valve and pump - Brand can be optional
Controller system PLC - Mitsubishi or same level
Butt welding Cut and welding platform Argon welding customer supply manual welding machine(option)
Coil car Coil car 3t/5t option

Features

1. Storage device will help coordinate the various parts of the operation of the storage rack roll forming machine, so as not to produce high-speed collisions.
2. For shelf products in different sizes, the users can adjust the product dimension by changing the spacer bush in the storage rack roll forming machine.
3. The machine can produce several different profiles and the forming unit can be changed in a short time because of the scientific design of the machine.
4. The machine can be customized according to special needs and we have professional teams with 15 years' working experience to design and manufacture the machine you need.

Delivery time: 45 days after receiving 30% deposit of contract value.

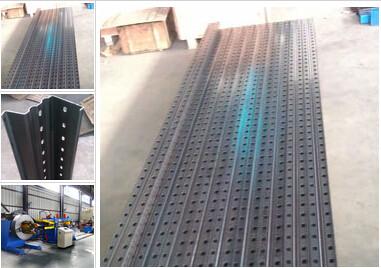

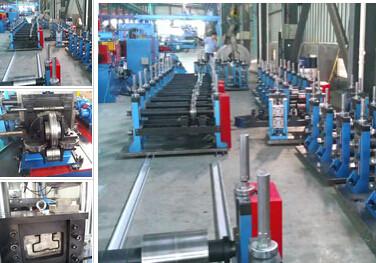

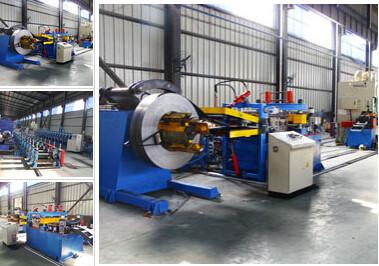

Rack machine shows

Racking Sheet Metal Roll Forming Machines Adopts Track Cutting TechnologyRacking Sheet Metal Roll Forming Machines Adopts Track Cutting Technology

Racking Roll Forming Machine

Racking roll forming machine is known as shelf roll forming machine or shelving rack roll forming machine. The machine adopts servo controlled material feeding technology for serried punching to guarantee the precision, the fly shearing ensure the machine capacity and gear box transmission ensure the machine strength for high duty working. The machine made by Jinggong is good at manufacturing high-quality shelves and racks.
