Specifications
Brand Name :
Shenghong
Model Number :
SWL151221-77
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Type :
Roof tiles cold roll forming machine
Suitable Material :
Colored galvanized steel sheet
Machine Dimension :
depend on profile
Total Weight :
depend on profile
Configuration :
Classic, standard
Voltage :
380v, 3phase, 50Hz or at buyer`s requirement
Description

33 KSI Yield Stress Metal Sheet Cold Roll Forming Machine / Tile Roll Forming Machine

Quick Details

Roofing tile forming machine including: feeding, guiding, roll forming,cutting, hydraulic station, control station and run out table；Cold Roll forming machinery consists of uncoiler and its base, coil sheet
guiding equipment, film covered device, roll forming system, post-cutting equipment,
hydraulic station, controlling system, supporter table.

Roofing Tile Forming Machine Details

Material Spec: Colored and galvanized steel sheet at yield stress 33KSI
Thickness Coll Sheet: 0.5--0.6 mm
Coil Width:1000mm / 1200mm / 1250mm or according to customer request
Wroking Speed: 2.0-3.0 m/min.(step distance at 380mm.)
Passive unocoiler capacity: Max.Capacity 5000kgs
Quantity of Stands: depend on profle
Controlling System: PLC
Type of Cutting: Roll-formed and length-set cutting
Machine Dimension: depend on profile
Total Weight: depend on profile
Voltage: 380V 3 phase 60Hz or at buyer's requirement

Metal Forming Machine Material of main equipment

1) Roller material:

high grade no. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm

2) Active shaft material:

high grade No.45 carbon wrought steel at diameter 75mm

3) Cutter blade:

Cr12 mould steel with quenched treatment

4) Electric elements:

control system with PLC model S7-200, Siemens transducer with ABB control panel with TP170, Siemens. It can input 10 sets of spec at one time

5) Oil tank

model of hydraulic system: CB-E310

Components and Function

Coil Feeding Equipment Consists of one uncoiler with capacity of 3000kgs and its base. The mandrel can expand or shrink. With separate button to make the mandrel roll.

Guiding Equipment Adopting guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming equipment.

Roll forming system The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers with quenched treatment after being machined by the exact machining tool.

Hydraulic Station Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

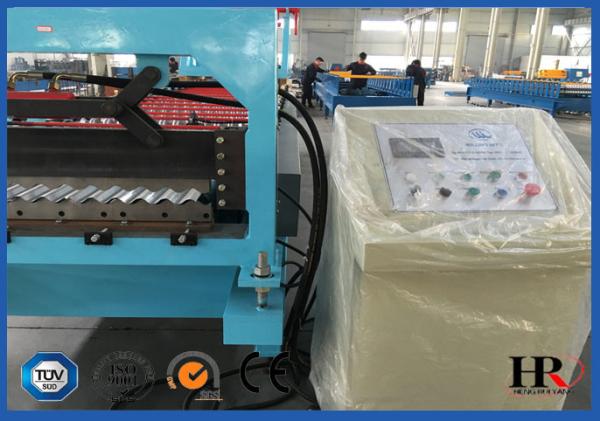

PLC Control Panel Main parts imported from Mitsubishi. The operation is easy and steady and can be choose operation by manual or automatically.

Working Flow

Decoiling the sheet Sheet guiding leveling the sheet Roll forming Cutting the panel

Introduction of cold Roll Forming Machine


The machine is full-automatically controlled by PLC, the whole hydraulic transmission, drive hydraulic oil jar carry out and shear through center pump station towards the hole, hydraulic pressure Motortransmit power as main transmission. it' s reliable to operate steadily by hydraulic pressure, shear towards hole precision geometry form rule of the notch. Its hydraulic pressure transmission,to set correct and fit.


The cold roll forming machine can produce many types of Roof tiles, wall panels, frame profiles.The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, punching equipment , pre-cutting equipment, C-shape forming system, hydraulic station, and PLC controlling system

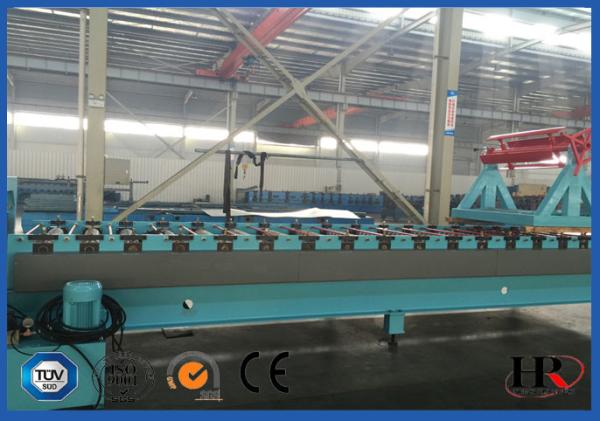

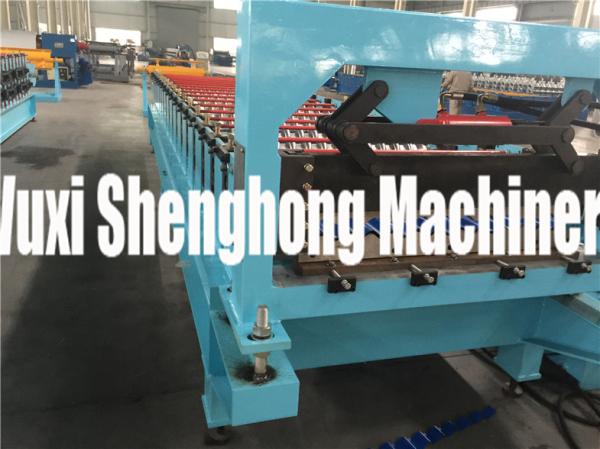

Machinery Shows

33 KSI Yield Stress Metal Sheet Cold Roll Forming Machine / Tile Roll Forming Machine

Workshop Show

33 KSI Yield Stress Metal Sheet Cold Roll Forming Machine / Tile Roll Forming Machine
