Specifications
Brand Name :
Shenghong
Model Number :
SWL151221-71
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Production Capacity :
16-18 m / min
Material :
Galvanized / Steel Purpline
Product range :
all the types from 100 to 250
Coil strength :
235-345 Mpa
Description

Cold Sheet Metal Roll Forming Machines with Excellent Anti - Bending Property

Specifications

C Z U Shaped Steel Purlin Roll Forming Machinebiggest and most competitive machinery manufacturer in China, C Z U Purlin Machine are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factories,warehouses, garages, exhibition centers, cinemas, theatres and gardens. The products of U, C, Z shape purlin forming machine have excellent anti-bending property and are easy to install.

Product Features of U Shaped Purlin Roll Forming Machine


1.The machine is full-automatically controlled by PLC, the whole hydraulic transmission, drive hydraulic oil jar carry out and shearthrough center pump station towards the hole, hydraulic pressure Motortransmit power as main transmission, characteristic its reliable for tooperate steadily by hydraulic pressure, shear towards hole precision geometry form rule of the notch. Its hydraulic pressure transmission,two sete correct and fit.


2.U purline Forming Machine can produce many types of U-shaped purline.The whole line mainly consists of uncoiler and its base, coil sheetflattening equipment, punching equipment, pre-cutting equipment,C-shape forming system, hydraulic station, and PLC controlling system

3.sandwich panel machine.sandwich panel machinery,roll foaming machine

Technical Data of C Shaped Purlin Roll Forming Machine

No. Items

Type Unit

 Specification
1 Size mm 19000×1200×1400
2 Weight kg 11000
3 Width mm 100 ~ 472
4 Thickness mm 1.6-3.2
5 Main motor power kw 7.5
6 Working Speed m/min 16-18
7 Stand of forming machine stands 19
8 Product specification mm (80×50×15)~ (300×80×20)
9 Suitable Material Colored galvanized steel board
10 Controlling system PLC

Purlin Channeling Machine Working Flow

Decoiling the sheet-sheet guiding -coil strip leveling-roll forming-punching for horizontal hole-punching for vertical hole-measure length-cutting the panel-panels to the supporter

Material of Main Equipment

Roller Material

GCr15 bearing steel, with quenching treatment.

Active Shaft Material

High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft.

Electric Elements

PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements are from famous suppliers of China.

Cutter blades

Cr12 mould steel with quenched treatment.

Packaging & Delivery

Packaging Details:

1. Export standard package for container
2. Host nude, wheels with oil and gas bubble cushion packaging.
3. PLC controller with bubble cushion packaging
4. Spare parts in wooden cases.

Delivery Detail:

about 40 days

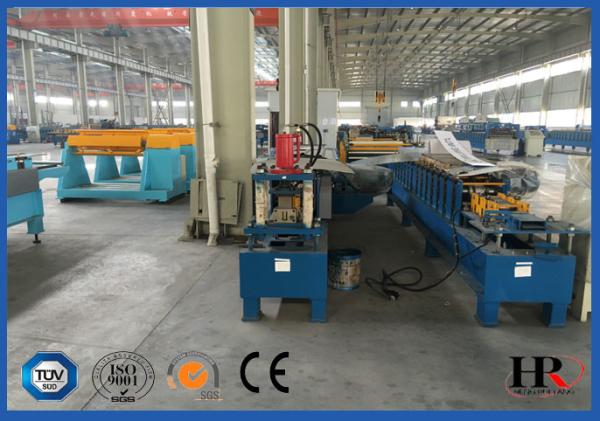

Machinery Shows

Cold Sheet Metal Roll Forming Machines with Excellent Anti - Bending Property
Sampleroom Show
Cold Sheet Metal Roll Forming Machines with Excellent Anti - Bending Property
