Specifications
Brand Name :
Shenghong
Model Number :
Roof Tile SWL151218-60
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Series :
Roofing and Wall Panel
Condition :
New
Weight :
10 tons
Controls :
PLC
Material :
galvanized or pre-painted steel sheet
Electric Elements :
PLC control panel, transducer imported from Mitsubishi of Japan
Description

Professional Sheet Metal Roll Forming Machines / GI Corrugate Roof Forming Machine

Brief Introduction

  1. GI Corrugate Roof forming machine
  2. material thickness:0.2mm
  3. feeding width: 762/925mm

Machine composition

  1. 5Ton*1250mm Hydraulic un-coiler
  2. Hydraulic system expand coil inner hole, Pump motor: 3KW
  3. Frequency Inverter to regulate turning speed, Motor: 2.2KW
  4. Link-connect expanding system
  5. Automatic stopping device, Load capacity = Max.5Tons
  6. Coil Inner-diameter= 510±30mm, Coil width = Max.1250mm
  7. Dance arm assistance for coil-turning speed control
  8. Manual Pre-shearing device (Un-powered)
  9. Smart cut control, to cut off the end of the final piece of sheet only

Cold Rolling Mills

  1. Feeding section with guide;
  2. Gear/Sprocket driving;23-step to form
  3. Rollers manufactured from 40Cr, CNC lathes, hard Chrome Coated
  4. Shafts Diameter=75mm, Precision Machined
  5. Main motor =7.5 KW, Frequency speed control
  6. Forming speed:Approx. 15m/min;
  7. Protection Mesh Cover (full mesh type) Above Roll-former To Avoid Hands Go Inside

Hydraulic Cutting Device

  1. Stop to cut, Post cut, No Blanking cut
  2. Pump motor =4.0KW
  3. Cutting tool material : Cr12, Heat treatment;

PLC Control System

  1. Control the quantity & cutting length automatically;
  2. Combined with: PLC, Touch Screen (SIEMENS), Inverter (SCHNEIDER), Encoder (Omron), etc
  3. Cut-to-length tolerance≤±2 mm
  4. Control Voltage 24V
  5. Product Rack Un-powered, 3 units

Packaging & Delivery

Packaging Details 40HC'*1
Delivery Detail 45 DAYS

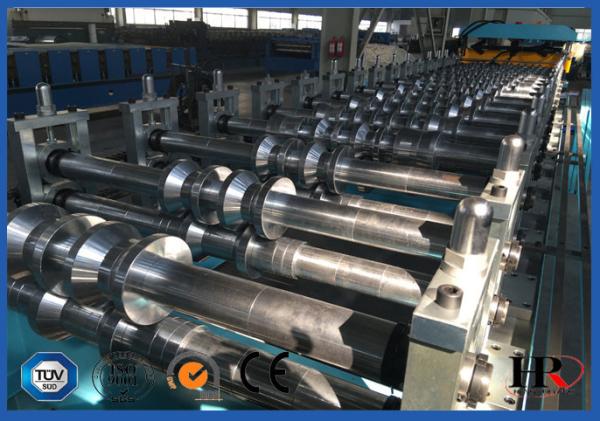

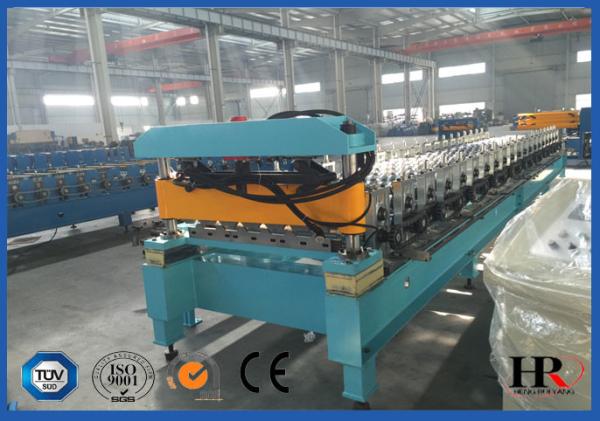

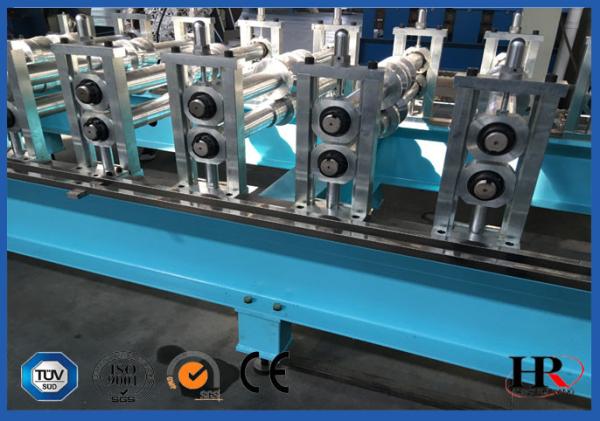

Machine Shows

Professional Sheet Metal Roll Forming Machines / GI Corrugate Roof Forming Machine

Final Products Showroom

Professional Sheet Metal Roll Forming Machines / GI Corrugate Roof Forming Machine
