Specifications
Brand Name :
Shenghong
Model Number :
Roof Tile SWL151218-57
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Series :
Roofing and Wall Panel
Condition :
New
Weight :
10 tons
Controls :
PLC
Material :
galvanized or pre-painted steel sheet
Electric Elements :
PLC control panel, transducer imported from Mitsubishi of Japan
Description

Pre-cutting Sheet Metal Cold Roll Forming Machine With Gear / Sprocket Driving

Steel roofing tile forming machine

production line

 main description

5tons*1250mm hydraulic uncoiler

 hydraulic expanding, main motor driven:3kw

entry bench

 guiding the sheet into the roll formng machine

pre-cutting device

 to cut the end of the final sheet
roll formng machine

18~22 roller stations

gear / sprocket driving

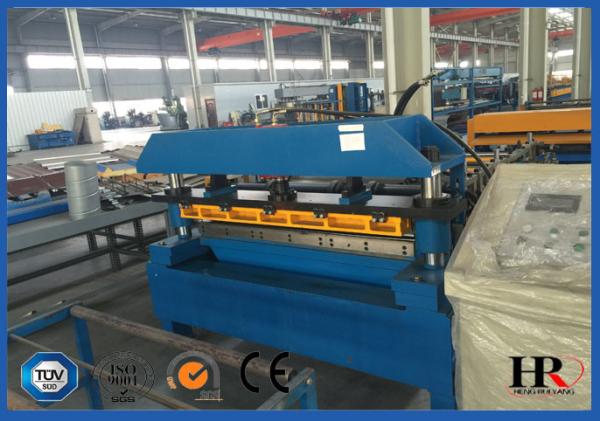

hydraulic pressing & cutting device

post cut, no banking cut

matiral of cutting blade: Cr12, heat treat

Step hight 16/18mm
PLC control system

automatically control the length of sheet, quantity and pressing

PLC, Touch Screen (SIEMENS), Inverter (SCHNEIDER), Encoder (Omron), etc
collecting table 3 units( can be adjustable by hands according to the length of she

Quick Details

  • Condition: New
  • Type: Tile Forming Machine
  • Tile Type: Glazed Steel
  • Use: Roof
  • Place of Origin: China (Mainland)
  • Brand Name: Shenghong
  • Weight: 10TON
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery oversea

Specifications

steel roofing tile forming machine
1. PLC control sysem to realize machine running automatically
2. 4~5m/min

Production line composition

hydraulic uncoiler--entry bench--pre-cutting device--roll forming machine--hydraulic pressing & cutting device--PLC control system--collecting table

Packaging & Delivery

Packaging Details 40HC'*1
Delivery Detail 45 DAYS

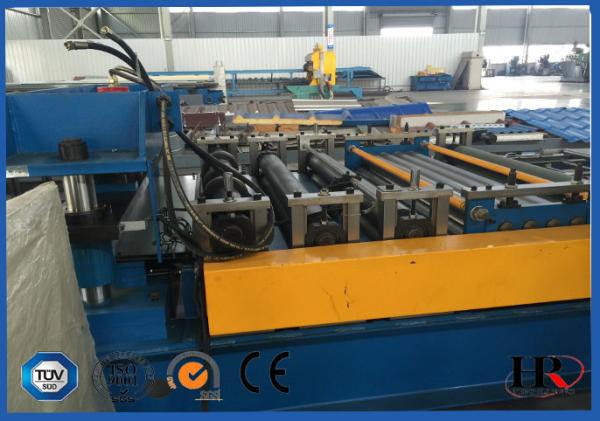

Machine Shows

Pre-cutting Sheet Metal Cold Roll Forming Machine With Gear / Sprocket Driving

Final Product Showroom

Pre-cutting Sheet Metal Cold Roll Forming Machine With Gear / Sprocket Driving
