Specifications
Brand Name :
Shenghong
Model Number :
Roof Tile SWL151218-63
Certification :
CE ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
25 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
1. Export standard package for container 2. Host nude, wheels with oil and gas bubble cushion packaging. 3. PLC controller with bubble cushion packaging 4. Spare parts in wooden cases.
Series :
Trapezoid Sheet Metal Cold Roll Forming Machine
roll station :
20 stations
Forming speed :
Approx. 12 - 15 m /min
Controls :
Panasonic Controls
Material :
galvanized or pre-painted steel sheet
Electric Elements :
PLC control panel, transducer imported from Mitsubishi of Japan
Description

16 - 26 Stations Sheet Metal Roll Forming Machines with High Grade 45 # Steel

Sheet Metal Cold Rolling Mills Introduction

Coil Material

Thickness 0.8-1.5mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material PPGI, GI.
Decoiler / Uncoiler Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Roll Forming Machine Forming Stations 16-26 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 90mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 11KW X 2
Cutting Cutting type Hydraulic cutting
Cutting power 4KW
Cutting Tolerance 10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Runout Table Table type Simple nonpower type
Function To support the finished panels

Hydraulic Cutting Device

  • Stop to cut, Post cut, No Blanking cut
  • Pump motor =4.0KW
  • Cutting tool material : Cr12, Heat treatment;

PLC Control System

  • Control the quantity & cutting length automatically;
  • Combined with: PLC, Touch Screen (SIEMENS), Inverter (SCHNEIDER), Encoder (Omron), etc
  • Cut-to-length tolerance≤±2 mm
  • Control Voltage 24V
  • Product Rack Un-powered, 3 units

Machine Composition

  • 5Ton * 1250mm Hydraulic un-coiler
  • Hydraulic system expand coil inner hole, Pump motor: 3KW
  • Frequency Inverter to regulate turning speed, Motor: 2.2KW
  • Link-connect expanding system
  • Automatic stopping device, Load capacity = Max.5Tons
  • Coil Inner-diameter= 510±30mm, Coil width = Max.1250mm
  • Dance arm assistance for coil-turning speed control
  • Manual Pre-shearing device (Un-powered)
  • Smart cut control, to cut off the end of the final piece of sheet onl

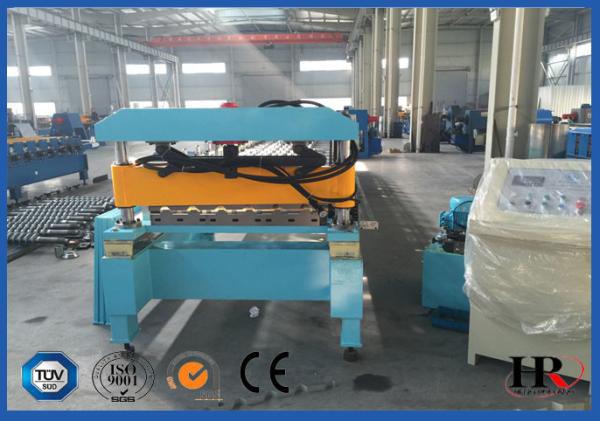

Machine Shows

16 - 26 Stations Sheet Metal Roll Forming Machines with High Grade 45 # Steel

Mannul Decoiler Show

16 - 26 Stations Sheet Metal Roll Forming Machines with High Grade 45 # Steel
