Specifications
Brand Name :
Shenghong
Model Number :
SH160912-10
Certification :
CE ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS / year
Delivery Time :
40 days after payment
Packaging Details :
Container
Controls :
Mitsubishi transducers, Schneider Electric, PLC
Roller :
Antirust Treatment
Yield Stress :
230-300; 300-350
Certificate :
Soncap, AAA credit
Number of stations :
16-25 stations
Roller material :
45# steel, coated with chrome
Description

Elegant Glazed Roof Tile Making Machine High Speed PLC Control ​

Description of roof tile roll forming machine:


The roofing tile products are formed by cold roll forming machine from high quality coated sheet, which performs the elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, it is convenient and takes short time for installation.
The machine is for continuously roll forming and pressing step tiles on series of product profile. The length can be set up or unlimited and the depth of each step is from 10 to 30mm adjustable.
This roofing tile roll forming line consists of hydraulic single head type uncoiler, roll forming main machine, hydraulic forming tile machine, hydraulic automatic cutting machine, products run out table, PLC automatic control cabinet.


Producing process sketch of glazed steel tile roll forming machine:


PLC Control Cold Roll Forming Machine Elegant Glazed Roof Tile Making Machine

Technological process of glazed tile roll forming machine:


Uncoiling---Feeding---Leveling---Punching---Roll forming---Cutting---Products collecting

Technical parameters:


Number of stations: 16-25 stations
Length of step: 150-500mm
Depth of step: 10-30mm
Forming speed: 32 steps / min(flying press) or 20 steps / min
Steel thickness: 0.5-0.6mm
Roller material: 45# steel, coated with chrome
Main motor power: 5.5kw
Hydraulic cutting power: 4kw
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Control system: PLC with touch screen

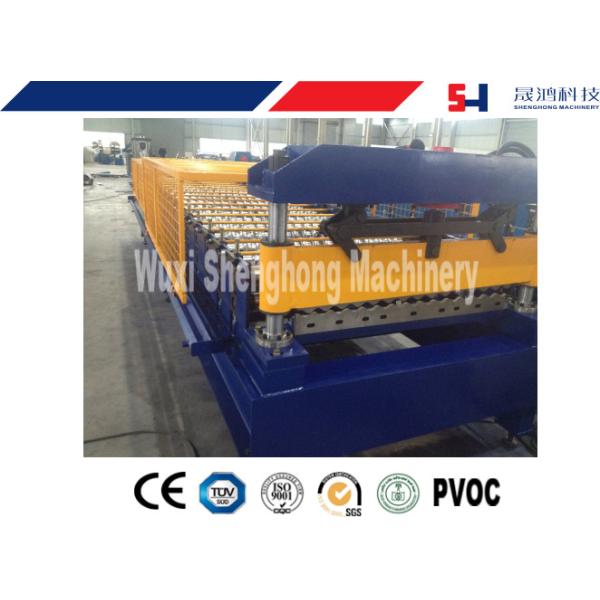

Machine photo
PLC Control Cold Roll Forming Machine Elegant Glazed Roof Tile Making MachinePLC Control Cold Roll Forming Machine Elegant Glazed Roof Tile Making Machine
