Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile
Specifications
Brand Name :
Shenghong
Model Number :
SH16-06-05-19
Certification :
CE/ISO
Place of Origin :
China, Jiangsu
MOQ :
1 sets
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 SETS/ MONTH
Delivery Time :
40 days after payment
Packaging Details :
Container
Control system :
Siemens PLC control
Power(W) :
11KW
Production line speed :
8-15m/min
Voltage :
380v(or as your required)
Dimension(L*W*H) :
11m*1.5m*1.2m
Description

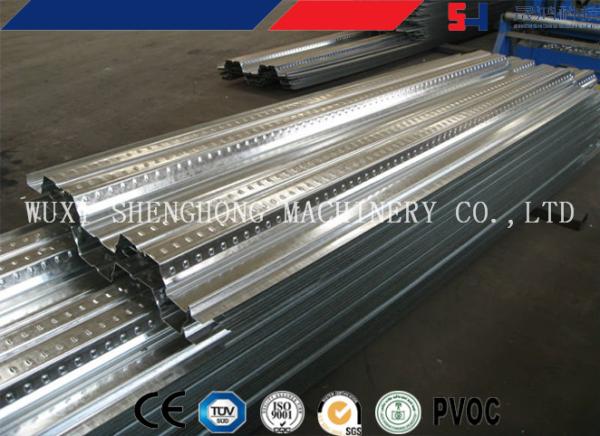

Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile

Product Description:

Process Flow:

De-coiling → feedinig → forming → punching → cutting → product

Steel Structure Cold Roll Forming Machine Metal Deck Walk Scaffolding Steel Profile

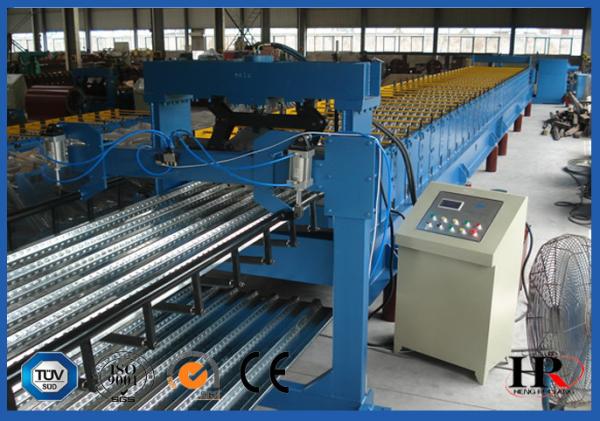

Machine components:

De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box --------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set

A Decoilr

1 Load Capacity 5T
2 Coil Inner-Diameter ≤508mm
3 Coil Outer-Diameter

≤3000mm

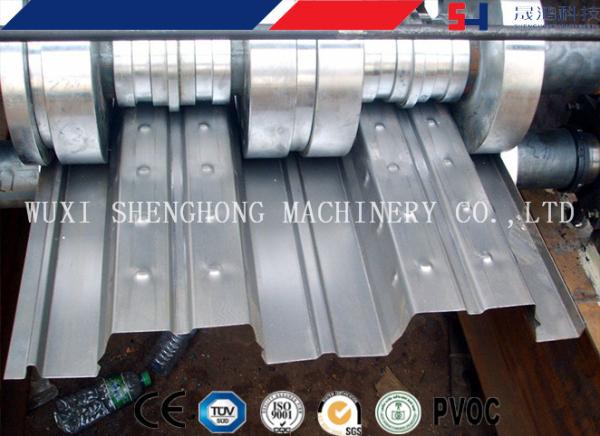

B Roll forming machine

1 Feeding material 1000mm
2 Effecvtive material 688mm
3 Material thickness 1-3mm
4 Forming Steps 30-steps
5 Line Speed 8 to 15m/min
6 Stand Independent stand structure (raft structure)
7 Drive Independent motor and moved by chain
8 Material of Roller 40Cr, HRC45-55
9 Shaft Diameter 100mm
10 Main Motor Power About 80KW
11 Shaft of material 45#steel after treatment
12 Voltage

380V/50HZ/Three Phase

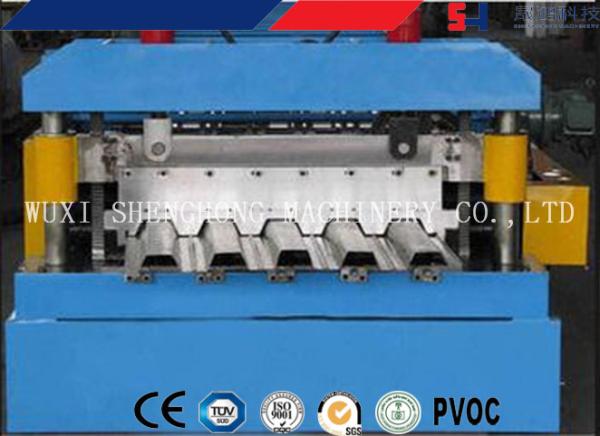

C Cutting device

1 Cutting Die Cr12, HRC58-62
2 Tolerance ±2mm
3 Valve

Adopts Italy Atos

D Control system

1 Type PLC Frequency Control System with touch screen
2 PLC Brand Japan Panasonic
3 Encoder Brand Main Application: Floor decking
4 Transducer Panasonic
5 Length Error

±2mm

E Output table

1 Function It is simple and used to load finished product.
2 Length

6m

AFTER SALE SERVICE

- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.

- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.

- Training time: 5 days.

- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.

-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)


Advantages

1.We are factory and located in Shanghai,China,offer best quality machines

2. Customers Design ,Size,Color&Logo are accepted.

3. With20 years professional manufacture experience

4. Prompt Delivery&Competitive Price

5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.
