Specifications
Brand Name :
DINGBO
Model Number :
DBTM
Certification :
CE, SGS, ISO
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets per month
Delivery Time :
within 90 days after receiving the deposit
Packaging Details :
Export package
Product name :
DB165 ERW Welded Tube Mill
Usage :
ERW Welded Tube Mill
Material :
steel
Thickness :
round 2.0-5.5mm (square tube 2.0-4.5mm)
speed :
10M/min～40M/min
Maximum coil weight :
≤8T
Description

ERW Welded Tube Mill Straight Seam Welded Pipe High Frequency Welded Tube

DB219 ERW Welded Tube Mill

Product Descriptions

Welding pipe machine line is complete equipment for welding steel pipes. It rolls the strip or plate then welds the tube to steel pipes by welding or submerged arc welding. Welded pipe making machine is composed of uncoiler, leveling machine, butt welder, loop, straightening machine and high frequency equipment.

Working Flow

{steel strip} — un-coiler — (opener & straightener & pincer & leveler) — strip-head shearer & butt welder station — vertical cage accumulator or horizontal spiral accumulator loop — forming M/C (main driving unit + flattening unit + breakdown section + fin pass section +seam guiding stand + high frequency induction welding system + squeeze welding roller stand + outside scarfing unit + horizontal ironing stand) — emulsion cooling section — sizing M/C (main driving unit + sizing section + speed testing unit + straightener + pull-out stand) — CNC flying saw under computer control — conveyor table.

ERW 3.0mm Tube Mill Machine For High Frequency Welded Tube

Product Parameters

No. Item Data
1 Pipe O.D(round) 76mm～165mm
Pipe O.D(square) 60*60-130*130-100*160mm
2 Thickness round 2.0-5.5mm (square tube 2.0-4.5mm)
3 speed 10M/min～40M/min
4 length 6M～12M
5 Maximum coil weight ≤8T

Machine Components

No. Commodity & Description Quantity
1 Double Head Decoiler 1 set
2 Cutting and Welding machine 1 set
3 Vertical Accumulator 1 set
4 Forming, welding and sizing unit 1 set
5 Main drive gear box 1 set
6 Cutting saw 1 set
7 Run-out table 1 set
8 150kw tubes high frequency and DC dragger 1 set
9 Control System 1 set

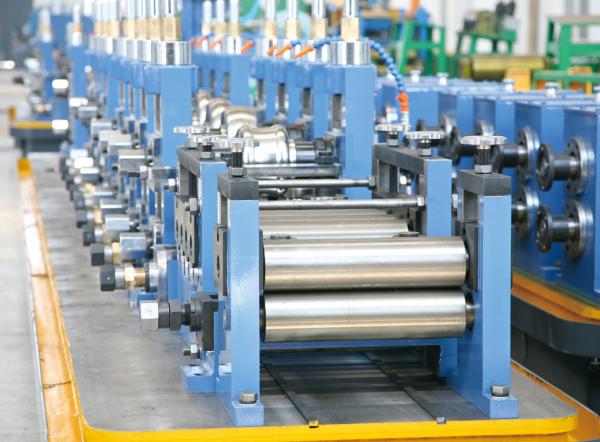

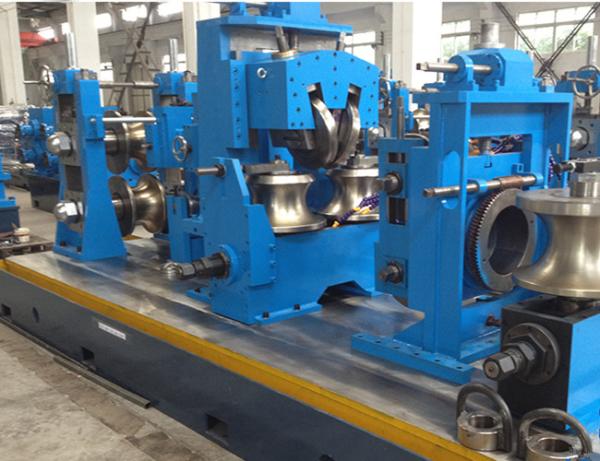

Machine Picture

ERW 3.0mm Tube Mill Machine For High Frequency Welded Tube

Application

Carbon Steel Erw Tube Mill,Tube Mill Line ,Erw Pipe Mill mainly produces stainless steel pipes used for decoration such as furniture, hand railing, household electric applicance, curtain rail, etc. The machine not only can make round pipe, but also square pipe, rectangle pipe, oval pipe and other irregular pipe as well.

ERW 3.0mm Tube Mill Machine For High Frequency Welded Tube
