Specifications
Brand Name :
DINGBO
Model Number :
DBTM
Certification :
ISO, SGS, CE
Place of Origin :
Jiangsu,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets per month
Delivery Time :
within 90 days after receiving the deposit
Packaging Details :
Export package
Product name :
DB50 Expanded 76 High Frequency Welded Tube Mill Line
Usage :
High Frequency Welded Tube Mill Line
Material :
steel
Speed :
20-100m/min
Main motor :
80KW
H.F welder :
150Kw
Description

DB50 Expanded 76 High Frequency Welded Tube Mill Line

Product Descriptions

This welded machine line is specially used for producingΦ19-Φ76mm, δ0.5-2.5mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe(δ≤2mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.

Working Flow

Slit Coil — UnCoiler — Shearing And Butter Welder — Storage/ Accumulator — Forming — Welding — Cooling — Sizing — Cutting Saw — Run Out Table — Finishing — Pipe Collecting and Packaging

Welded Steel Pipe Production 100m / Min Tube Mill Machine Line

Product Parameters

  • Pipe O.D(round): 16-76mm
  • Square pipe: 12*12-60*60-40*80mm
  • Thickness: round0.5-3.25mm (square 0.5-2.2mm)
  • Length: 4-12m
  • Speed: 20-100m/min
  • Main motor: 80KW
  • H.F welder: 150Kw
  • Maximum coil weight:≤2500kg
  • Dimension of machine:40M*5M(L*W)

Machine Components

  • Decoiler
  • Shear and butter welder
  • Accumulator
  • Straighener
  • Forming machine
  • Welder and cleaner
  • Cooler
  • Size mill
  • Flying saw cutter
  • Run out table
  • Pneumatic system
  • Electrical control


User configuration items (for reference):

Unit power standard 380V / 22V; 50HZ; three-phase four-wire system
Unit power high frequency 150 KW
Main motor 80 KW
Unit area 45M×5M(L*W)
High-frequency room volume 5M×4M×2.8M
Water source cooling pool 30m³ / 1 set high-pressure pump
Air source 1 set Air compressor
Required lifting equipment Two 10-ton cranes
Conventional consumables
  • High-frequency cable and unit connection
  • Magnetic rod 3.Saw blade

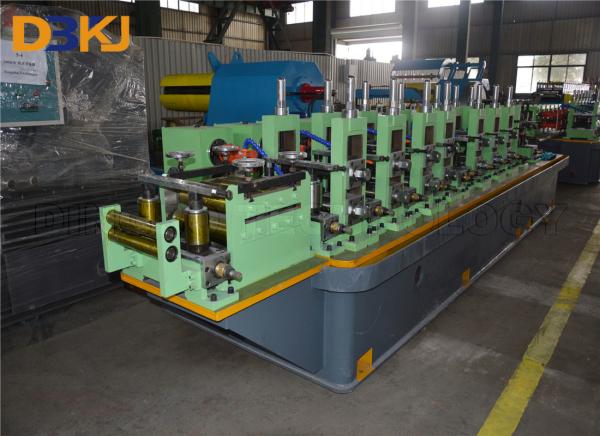

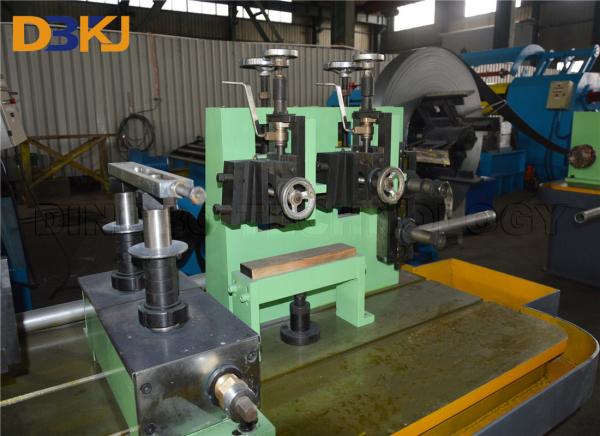

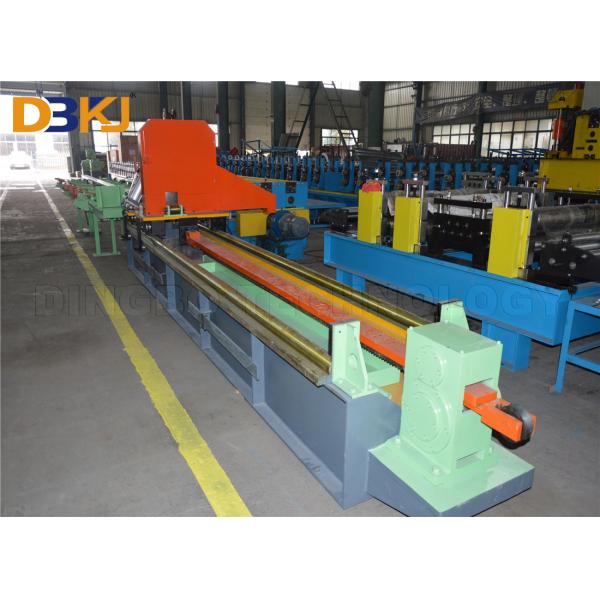

Machine Picture

Welded Steel Pipe Production 100m / Min Tube Mill Machine Line

Product tags

steel pipe manufacturing machine

,

welded pipe making machine

,

spiral welded pipe manufacturing process
