Electric Strip Steel 6.0mm Cut To Length Machine
Electric Strip Steel 6.0mm Cut To Length Machine
Electric Strip Steel 6.0mm Cut To Length Machine
Electric Strip Steel 6.0mm Cut To Length Machine
Electric Strip Steel 6.0mm Cut To Length Machine
Electric Strip Steel 6.0mm Cut To Length Machine
Specifications
Brand Name :
DINGBO
Model Number :
DBSL
Certification :
CE ISO SGS
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20sets/month
Delivery Time :
Shipped in 30-70 days after payment
Packaging Details :
Export standard sea package with film and steel
Warranty :
2 Years
Color :
Requirement
Condition :
New
Application :
Cutting Metal Coil
Type :
cut to length
Voltage :
380V
Description

Simple Cut to Length Line

Product Descriptions

The Features of Simple cut to length line

  • Used for end customers, convenient for processing and production, simple operation and convenient maintenance
  • High degree of automation, easy to operate and maintain
  • Hydraulic uncoiler with loader for fast loading
  • Compact design requires minimal space
  • Low cost, high quality, best productivity
  • The design of the whole machine is reasonable, compact, high precision, high efficiency, flexible and convenient adjustment

Working Flow

Uncoiler -- Feeding -- Leveling -- Straightener -- Measuring shears -- Output table

Electric Strip Steel 6.0mm Cut To Length Machine

Product Parameters

1 Materials PPGI, GI, Aluminum, Carbon steel, Hot Rolled, Cold Rolled, Stainless steel
2 Thickness 0.3-1.5mm
3 Width 1250mm
4 Coil I.D. 508mm
5 Coil weight 5-10Tons
6 Max speed 0-15m/min
7 Cutting precision 1.0 mm/two meters 0.5mm/one meter
8 Length tolerance ≤±1mm/2000mm
9 Power 380V/50HZ/3PH(Customized)
Main Components
Name Quantity
Coiler car 1 set
Decoiler 1 set
Side guide 1 set
Straightener 1 set
Measuring Hydraulic cutting 1 set
Unloading table 1 set
Motor 1 set
Hydraulic unit 1 set

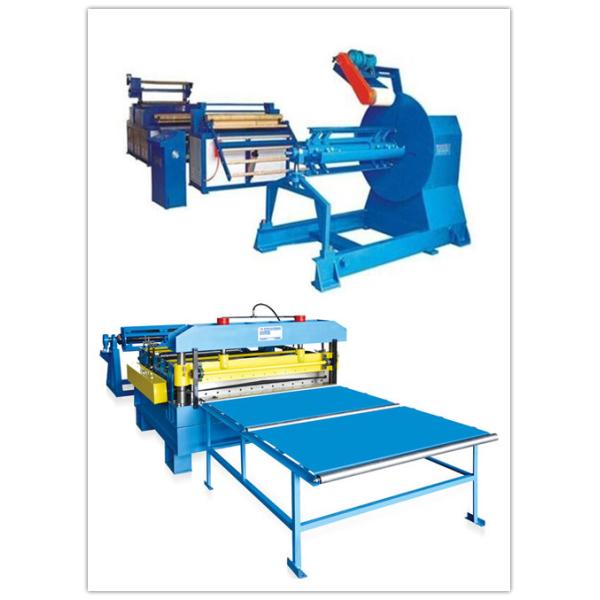

Machine pictures

Electric Strip Steel 6.0mm Cut To Length Machine
