Specifications
Brand Name :
Dingbo
Model Number :
DBSL
Certification :
CE ISO SGS
Place of Origin :
Jiangsu, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30sets per month
Delivery Time :
within 45 days after receiving the deposit
Packaging Details :
Export package
Use :
steel slitting
Material :
Carbon steel
Processing Thickness :
0.3mm-3mm
Slitting Speed :
≤100 m/min
Max weight  :
0-25T
Max. Slitting Numbers :
5-10pcs
Description

coil slitting line machine

Product Descriptions

The Features of Simple slitting line

  • High level of automation, easy to operate and maintain.

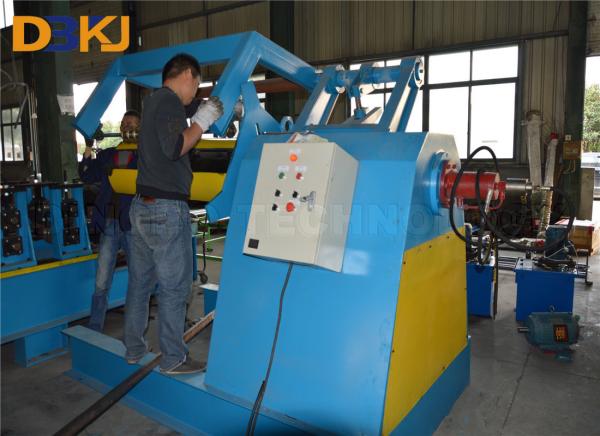

  • Hydraulic Decoiler with a loading car for quick loading
  • Leveler with 4 high and 6 high rollers for the maximum flatness
  • Gentle treatment of surfaces by high-quality rollers and conveyor materials
  • High-quality cuts with minimum burr
  • Compact design requires minimum space
  • Low cost, high quality, optimum productivity

The flow of the process

Coil car -- Decoiler -- Strightener -- Crop shear -- Looper -- Slitter -- Looper -- Recoiler --Coil car

Hydraulic Cutter Line Coil Slitting Line Machine Coil Car Stainless Steel Processing High Rollers

Product Parameters

  • Material: PPGI, GI, Aluminum, Carbon steel, Hot Rolled, Cold Rolled, Stainless steel
  • Processing Thickness:0.2-1.5mm
  • Processing Width:1250mm
  • Slitting Accuracy:±0.05 mm
  • Slitting Speed:0-40m/min
  • Coil Inner Diameter :480-520mm
  • Coil Outer Diameter:≤1400 mm
  • Max. Slitting Numbers:5-10pcs
  • Slitting Coil Width:≥20 mm
  • Not limited to these parameters, custom made according to client practical demands.

Main Components

No Name Quantity
1 Entry coil car 1 unit
2 Hydraulic Decoiler 1 unit
3 Hydraulic Press and pinch device 1 unit
4 Hydraulic cutter 1 unit
5 Looper 1 1 unit
6 Side guide device 1 unit
7 Slitter 1 unit
8 Scrap winder 1 unit
9 Looper 2 1 unit
10 Tension stand 1 unit
11 Recoielr 1 unit
12 Exit coil car 1 unit
13 Hydraulic system 1 set
14 Electrical system 1 set


Material picture

Hydraulic Cutter Line Coil Slitting Line Machine Coil Car Stainless Steel Processing High Rollers

Hydraulic Cutter Line Coil Slitting Line Machine Coil Car Stainless Steel Processing High Rollers

Hydraulic Cutter Line Coil Slitting Line Machine Coil Car Stainless Steel Processing High Rollers
