Corrugated Sheet Roll Forming Machine

Corrugated Sheet Roll Forming Machine Introduction

Corrugated roof tile sheet roll forming machine can produce corrugated tile or panel which also called wave panel sheets, it is widely used in constructions and buildings, it can be used to build roof and wall. This kind of material can be used in many places such as gyms, warehouses, factories, etc.

All parts of the machine are processed with precision, and the surface of the roll is chrome-plated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll；

Customized coil processing solutions to solve all aspects of technical problems.

Technical Specifications for Corrugated Sheet Roll Forming Machine

1. Decoiler Type: Manual Decoiler
2. Material: GI or PPGI;
3. Material Thickness: 0.3-0.8mm
4. Roll Diameter: 70mm
5. Forming Roller stand: 18 stations;
6. Main Axis Material: First grade 45# steel
7. Roller material: 45 # steel coated with hard-chrome.
8. Forming Speed: 10-15 m / min
9. The thickness of the Wall Plate: 18mm
10. Main Power: 5.5KW
11. Cutting type: Hydraulic cutting
12. Hydraulic power: 3 KW (Subject to Final Electrical Control System)
13. Voltage: 380V, 3 Phase 50Hz
14. Control system: Panasonic PLC Control

Corrugated Sheet Roll Forming Machine Features

1. This machine is designed to process steel coil into a corrugated sheet with the desired specification in one step, and this is available even for thicker steel.

2. Our product makes use of roll forming technology to fabricate the corrugations one after another, resulting in released internal stress, reduced spring back effect as well as improved product quality.

3. This corrugated sheet roll forming machine is the most popular one among similar products in the market, and it can be tailored to best fit every customer's needs if relevant drawings are supplied. Meanwhile, the production process, including two options, is up to the customer.

a. Form the straight sheet with corrugated first, and then punch holes and curve the sheet outside the production line.

b. Shape forming, punching, curving and shearing operations are finished on the same production line automatically. There would be no straight edges on the sheet, thus the assembly is easy and the productivity is enhanced.

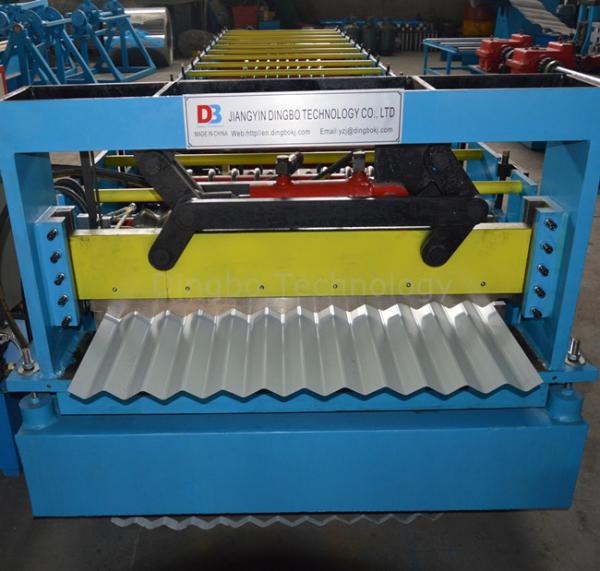

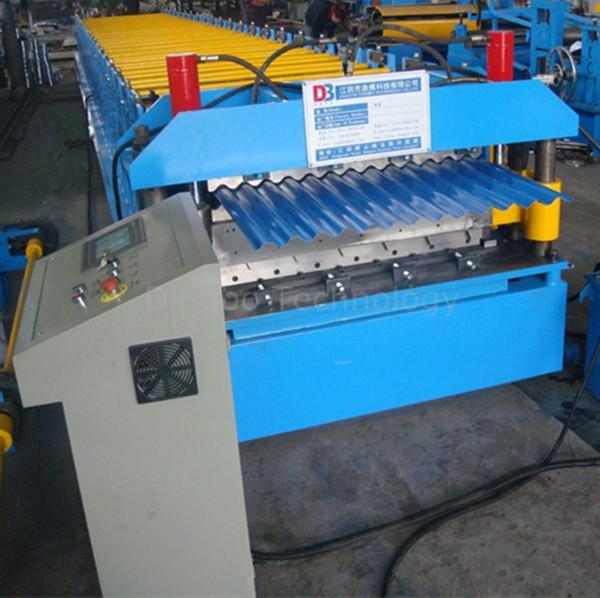

Corrugated Sheet Roll Forming Machine Photos for reference
