IBR &Corrugated roll forming machine
Describtion
We manufacture Roll Forming machine,European roller shutter machine,C & Z purlin machine,Roof & wall forming machine,Octagon tube machine,Guardrail forming machine,Tile roof forming machine,Door frame forming machine,Down pipe forming machine,Slitting line,Sandwich panel line,Floor decking forming machine,Cable tray forming machine,uncoiler and recoiler,Double-layer forming machine,Ridge cap forming machine,Cut to length line,Shearing and press brake machine,T-bar forming machine,roller shutter slat forming machien,etc.

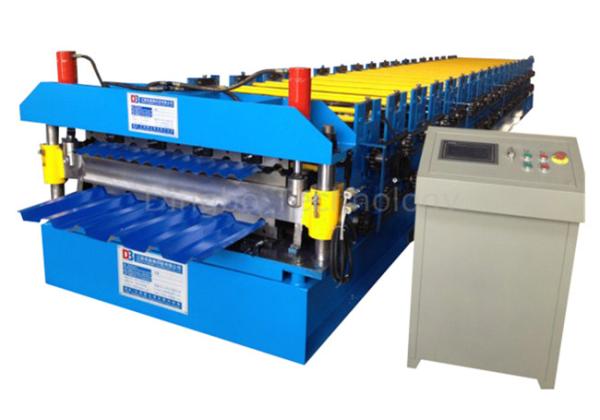

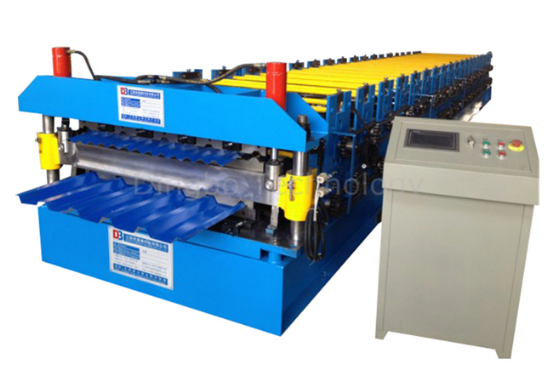

This machine is double layer roll forming machine, is standard profile drawing of Africa. It the msot popular in Africa.
Technical parameters
Items | Specifications | |
Material of coil | Material | Color steel |
Material Width | As per sketch | |
Material Thickness | 0.3-0.8mm | |
Forming system | Rolling Speed | 0-15m/min |
Roller Stations | 19Stations for upper layer 23Stations for lower layer | |
Roller Material | 45#steel 0.03-0.05mm chromed | |
Shaft Material | 45#steel | |
Shaft DIA | D70mm | |
Main Motor Power | 5.5kw | |
Side Plate | Wall plate | |
Way of Drive | By chain | |
Cutting system | Hydraulic cutting Power | 3kw |
Material of blade | Cr12Mov | |
Tolerance | +1.5mm | |
Electrical control system
| Electric Source | 380V, 50HZ,3 phase |
PLC Control System | Panasonic | |
Encoder | Omron |

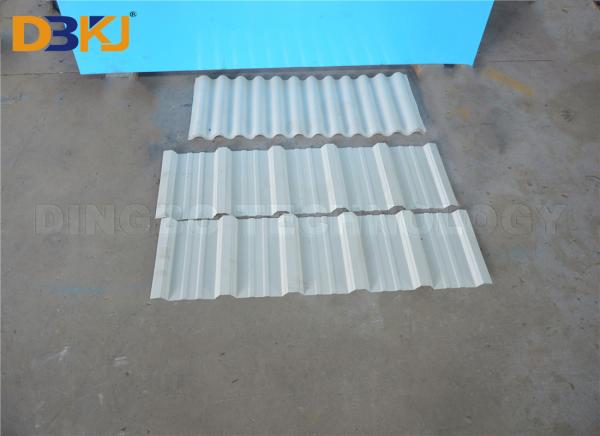

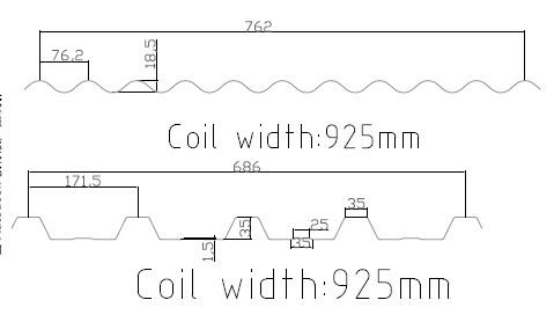

Profile drawing

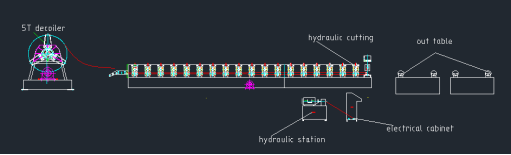

Working flow
Decoiler — Feeding — Roll forming— Cutting — Output table

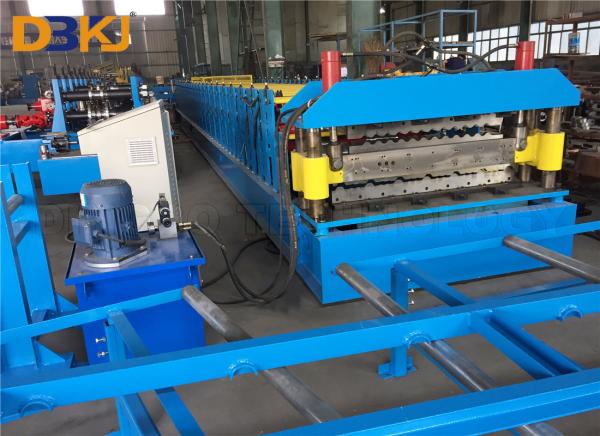

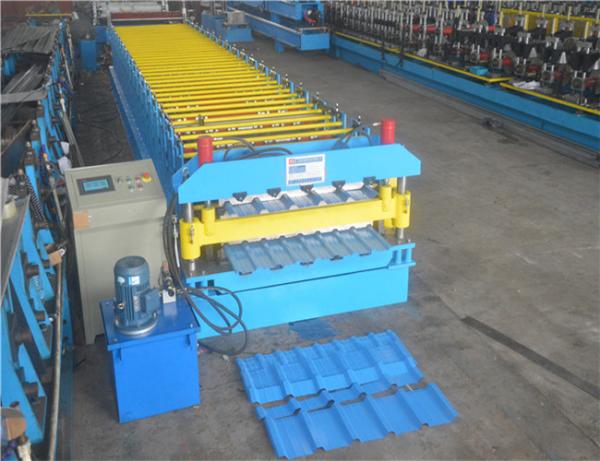

Customers visiting
Packing case
FAQ
1. Q: What's the warranty period? (24hours online)
12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.
2. Q: Do you have installation and commissioning service?
A.If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.
B. If buyer need we will send technician to buyer site to do installation and commissioning and training.
C.installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100/per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.
(Normally ,It takes about a week to install )
3. Q: What’s your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
4. Q: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time
5. Q: You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.
6. Q: Do you provide customized machine?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.
7. Q: How to place order ?
Inquiry---confirm the profile drawings and technical specification and price----confirm the PI---arrange the deposit or L/C---start production-- do inspection--- Shipment
8.What are your terms of payment ?
First payment: 30 % by T/T, second payment: 70% by T/T, after the successful inspection at seller’s workshop, and before delivery.
