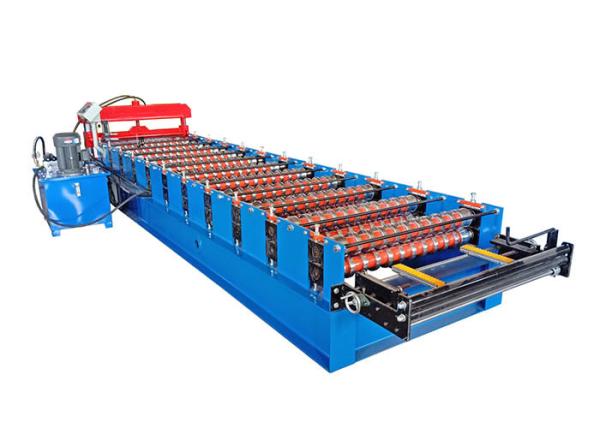

Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Color Steel Corrugated Roll Forming Machine 8 - 20 M/Min
Specifications
Brand Name :
SHITONG
Model Number :
836-988
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
8500$
Payment Terms :
L/C, T/T
Supply Ability :
30 SETS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
THE MAIN MACHINE IS NUDE
COLOR :
AS YOU REQUIRE
voltage :
AS YOU REQUIRE
RAW MATERIAL WIDTH :
1200MM
SHAFT :
70MM
name :
Corrugated Roll Forming Machine
Length :
6 meter
Description

Color Steel Corrugated Roofing Wall Iron Sheet Making Corrugated Roll Forming Machine

Working flow
Decoiler-- roll forming machine-- PLC control box-- hydraulic cutter- Run out table
NO.
Item
Specification
Material
Raw material
Galvanized steel or PPGI
Thickness
0.3-0.8 mm
Machine
Roller station
13 or depend on customer' drawing
Shaft diameter
75 mm
Solid shaft material
High grade 45# steel with Cr12 mov coated,
quenching & tempering & treatment
Roller material hardness 30-40 HRC
Cr12
Machine size
About 6*1.5*1.3 m
Machine weight
About 5 tons
Machine color
As customer need
Working speed
8-20 m/min
Cutter
Hardness
50-65 HRC
Cutting tolerance
± 1mm
Material
Cr12
Operate
Hydraulic cutting
Power
Driving way
Chain 1 inch
Main motor
4 KW
Pump motor for cutter
3 KW
Voltage
380V/50HZ, 3P or Customized as customer' request
Control system
PLC brand
Delta made in Taiwan
Screen
Touchable screen
Language
Chinese and English or add customer need language
Decoiler
Operation
Manual
Weight capacity
5 Tons
Price
Free as gift
Receive table
Operation
Manual
Length
3 m
Price
Free as gift

Color Steel Corrugated Roll Forming Machine 8 - 20 M/MinColor Steel Corrugated Roll Forming Machine 8 - 20 M/MinColor Steel Corrugated Roll Forming Machine 8 - 20 M/Min

FAQ

1. who are we?
Our company has 24 years of import and export experience, has its own factory, has a strong technical team and business team, and can provide you with one-stop service.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Sandwich Panel Machine,Accessory Machine for Sandwich Panel Line,Purlin Forming Machine,Cut to Length and Slitting Line,Roll Forming Machine

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Spanish, Portuguese, Arabic, Japanese, Korean, German, French and many more.

Please feel free to contact us:

Contact person: Jessie Wang

Whatsapp/Wechat: +8613230728517

Email: jessie@shitongjixie.com

ADD:No. 1 Road, Economic Development Zone, botou, Hebei, China
