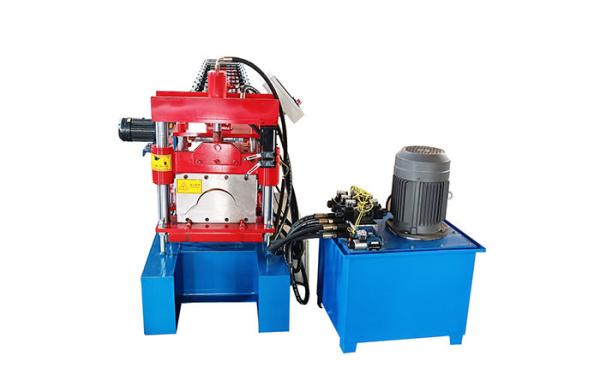

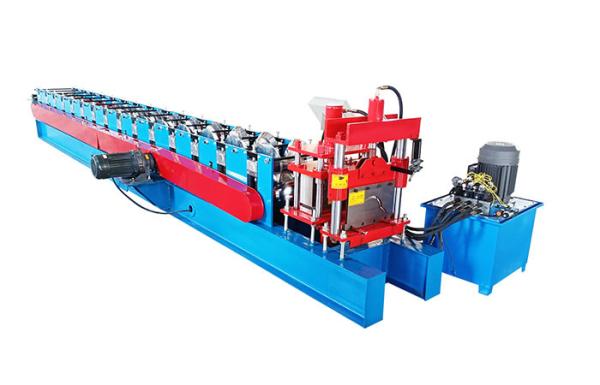

High Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/Min
High Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/Min
High Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/Min
High Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/Min
High Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/Min
High Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/Min
Specifications
Brand Name :
ST
Model Number :
333
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
$9000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
30 days
Packaging Details :
nude
name :
Light Steel Keel Roll Forming Machine
Speed :
10-15 m/min
Side plate thickness :
16 mm
Total power :
5.5 kw
Appearance size (About) :
5000mm*1000mm*1500mm
Weight(About) :
3 tons
Description

Roof Ridge Capping Tile Making Roll Forming Machine Made In China

Description

Explaination
Working speed
10-15 m/min(Shear time is not included)
Pressed plate thickness
0.3-0.8mm
Control mode
Panasonic PLC
Discharging rack
2 t manual discharging rack
Number of molding passes
12 lanes
Roll material
After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter
45# Steel finishing,Shaft diameter is￠65mm
Main engine power
4kw
Power of hydraulic station
5.5kw
Hydraulic pressure
12Mpa
Scissors material
Cr12Mov, quench HRC 58-62℃
Length tolerance
3m±1.5mm
Voltage
380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode
1.0 inch single row chain
Equipment form
Slab-wall structure
Equipment color
Company color
Equipment size
L*W*H—10.5m*1.5m*1. 2m
Date of delivery
50 days
Payment method
30% advance charge,70% pay off on delivery

Components and Technical Specification

No Technical Specification
1

Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T

Inner diameter: 500-508mm
2

Feeding Table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
4

Hydraulic System

Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
6 Computer Control Cabinet

The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC:EURA

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment
7

Output table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.

High Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/MinHigh Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/MinHigh Potency Roof Ridge Capping Roll Forming Machine 5.5kw 10-15m/Min

Botou Shitong Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel construction . C. Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.

Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine
