Specifications
Brand Name :
SHITONG
Model Number :
Tr5
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
5500$
Payment Terms :
L/C, T/T
Supply Ability :
30 SETS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
THE MAIN MACHINE IS NUDE
COLOR :
AS YOU REQUIRE
voltage :
AS YOU REQUIRE
station :
4 steps
SHAFT :
70MM
CUTTING :
HYDRAULIC CUTTING
name :
roofing sheet Roll Forming Machine
Description

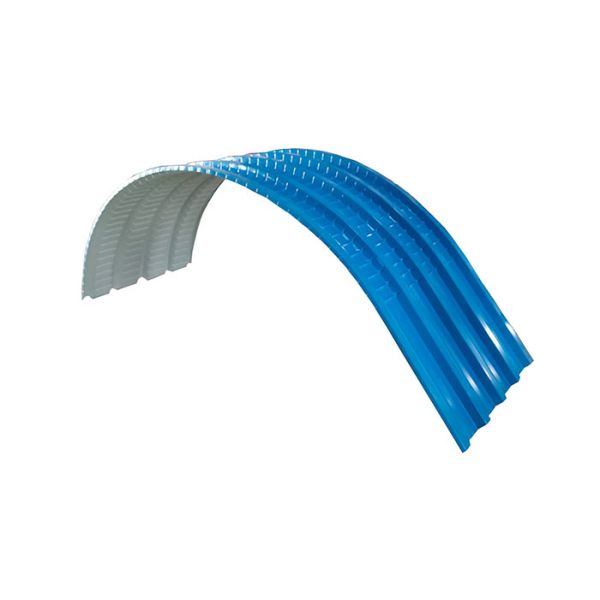

long curving roof sheet arched trapezoidal making roll forming machine
Essential details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops
Showroom Location:
Egypt
Condition:
New
Type:
Tile Forming Machine, Curving Former Machine
Tile Type:
Steel
Use:
ROOF, curving
Production Capacity:
15m/min
Place of Origin:
Hebei, China
Brand Name:
Xingbo
Voltage:
380v,50hz,3ph
Dimension(L*W*H):
2.5x1.2x1.8
Weight:
2200 kg
Warranty:
1 year, 12months
Key Selling Points:
Long Service Life
Rolling thinckness:
Other
Feeding width:
Other
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2021
Warranty of core components:
1 Year
Core Components:
PLC
Color:
make as request
After serivce:
Engineer installing
Place of origin:
Botou Hebei
Certicated:
ISO9001:2008 Ce Bv
Payment:
T/T,L/C
Mould:
CR12
Control:
Detla

Main parameters

No. main parameter of roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 1200mm
3 Rollers 4rows
4 Dimensions 3.0*1.6*1.5m
5 Power 4+3kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity 15-20m/min
8 Diameter of the roller Φ70mm
9 Weight About 2T
10 Voltage 380V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1.00mm
14 Control system PLC control
All technical parameters can be changed, according to user's need.


MAIN MACHINE PICTURES
Long Sheet Roof Panel Curving Machine Arched Trapezoidal Making Roll FormingLong Sheet Roof Panel Curving Machine Arched Trapezoidal Making Roll FormingLong Sheet Roof Panel Curving Machine Arched Trapezoidal Making Roll Forming

Why choose this curving machine?

1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available


Item		 Specification
Mterial Thickness (mm) 0.4-0.7
Yield strength (mpa) 235-345
Roller material 45#Chrome steel
Motor power Aabout 3kw
Control mode Delta PLC

Our company provides design layout diagrams free of charge, forming designers go to Germany to study every year, and plan the machine scheme exclusively for you according to your product size

Payment 30% T/T in advance
Packaging standard seaworthy packing
Delivery within 25 days
Guarantee 18 months free service/ pay service all the machine life
Installation and training

If buyers visit our factory and check the machine,

we will teach you how to install and use the machine,

and also train your workers/technician face to face.
Without visiting,we will send you user manual and video

to teach you to install and operate.
If buyer needs our technician to go to your local factory,

please arrange board and lodging and other necessary things.
