Customized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming Machine
Customized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming Machine
Customized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming Machine
Customized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming Machine
Customized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming Machine
Customized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming Machine
Specifications
Brand Name :
ST
Model Number :
836/840
Certification :
CE/ISO9001
Place of Origin :
HEBEI
MOQ :
1 set
Price :
contact the sales,she will give you the best offer
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 set per month
Delivery Time :
30-40 work days
Packaging Details :
the machine is nude
name :
steel roof roll forming machine
After-sales service provided :
Engineers available to service machinery overseas
Color :
Client's Request
Raw material :
Color Steel Sheet
Cutting blade material :
CR12
Description

steel roof and wall panel making double layer roll forming machine


1. Company information


BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. is a comprehensive manufacturing and trading company. We have three factories. One factory produces steel coils,corrugated steel sheets and sandwich panels, one factory produces roll forming machines, and one factory produces steel structures. We have completed technique,production,quality control, sales and service department to gurantee every customer's order to be finished perfertly.
High quality with favorable price and good service is our advantages. Besides our own products, we also provide OEM service and accept customized orders as well. We will provide diversified designs and professional services.
Our products have been exported to Uganda, Bolivia, Russia, Slovenia, Turkmenistan...ect. Customers are all satisfied with our products and service.

2. Technical parameters:

Raw material
material spec colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.2-0.8 mm
material expand width 1250mm

Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
main frame 350 H steel
forming steps

Up layer:11 rows
Down layer:13rows
productivity 20-25m/min
hydraulic station power 5.5 KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 6700mm*1500mm*1510mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements

Device Configuration

No number
(1) Manual decoiler 1 set
(2) Guiding device 1 set
(3) Main roll forming machine 1 set
(4) Hydraulic cutting device 1 set
(5) PLC electric control system 1 set
(6) Hydraulic driving system 1 set
(7) Special tools and parts 1 set
  • Payment Method

30% as deposit ,balance payment after inspection while before delivery.

  • Production Period

30 days after the 30% deposit.

  • Packing Method

Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.

  • After-sell Service

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.

  • Installation

If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.

package and Warranty:
- 1. Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2. This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3. All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4. When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.

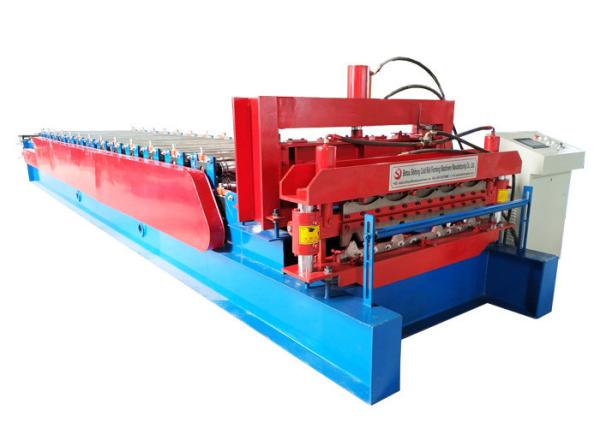

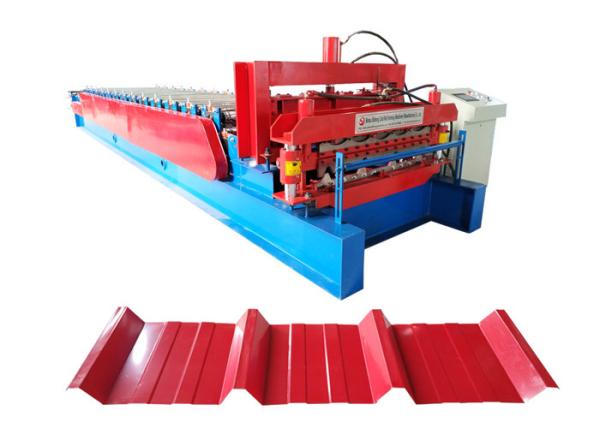

3. Machine picture

Customized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming MachineCustomized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming MachineCustomized Color Steel Roof Roll Forming Machine , Wall Panel Roll Forming Machine
FAQ
1. Q: What details of the machine you should get from me.

A: I will confirm all details with you, such as the voltage in your city.


2. Q: I am new in this field. How could i understand the machine very well

A: Why not contact me. I promise you that you will be professional after you get from me. It is true thing.


3. Q: I receive a lot of quotations, they are big range, How could i choose?

A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.
