Specifications
Brand Name :
ST
Model Number :
80-300
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1set
Price :
contact me
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
30 days
Packaging Details :
nude
Condition :
new
Warranty :
2 years
name :
Purlin Roll Forming Machine
Production capacity :
20-25m/min
Power(w) :
22kw
Control system :
PLC
Description

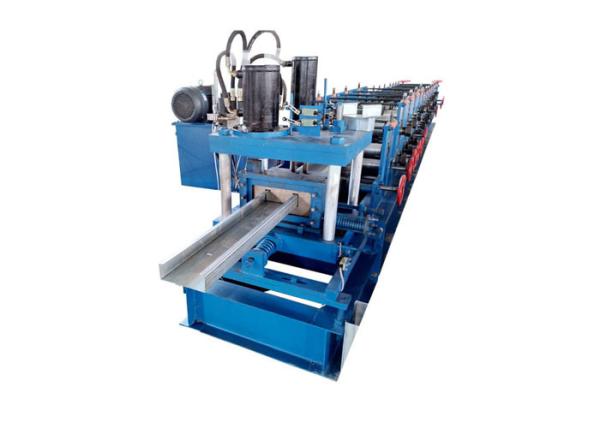

hot sale adjustable size 80 - 300 mm steel C Purlin Roll Forming Machine

Equipment Detailed Parameters:

material spec sheet, galvanized steel sheet, aluminum sheet
roller material High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material High grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 90 mm
side wall thickness 20 mm
chain size 2 inches
frame 350 H steel
forming steps 12 rows
productivity 15-20 m/min
hydraulic station power 22 KW
hydraulic pressure 10-12MPa
control system Delta PLC
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 7500mm*1000mm*1500mm
weight 6 tons
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements

FAQ

1. Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
2. Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
3. Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
4. Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
5. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
