Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm
Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm
Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm
Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm
Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm
Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm
Specifications
Brand Name :
SHITONG
Model Number :
1050/988
Certification :
ISO,CE
Place of Origin :
Cangzhou, China
MOQ :
1 set
Price :
Contact us get the best price
Payment Terms :
L/C,T/T
Supply Ability :
20sets/month
Delivery Time :
40-60 days
Packaging Details :
Loading container
Machine Size: :
9.6*1.2*1.5m
Raw material :
PPGI
Suitable thickness :
0.3-0.8mm
Working speed :
20-25m/min
Maching weight :
9600kg
Control system :
PLC control system
Description

Hydrulic driving system double layer roll forming machine produce two different profile

1. Hydrulic driving system double layer roll forming machine produce two different profile


---- One machine produce two different steel profiles can save customer's working space and investment.

---- We fill two type language in the PLC control system, Chinese and English, if customer have special requriement, we also can customized the language.

---- Machine adopted a hydraulic drving motor, machine working speed can be 20m/min.

---- We provide Pre-sale service, selling service and after sale service, 100% eliminate customer's worries.


2. Hydrulic driving system double layer roll forming machine produce two different profile parameters

Raw material
Material Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet 0.3-0.8 mm
Material expand width 940 mm/1000mm/1200mm
Efficiency width 762-760 mm/840-910mm/1000-1050mm
Machine details
Roller material High grade no. 45 forged steel with 0.05mm hard chrome plating
Shaft material High grade no. 45 carbon wrought steel
Cutting blade Cr12 mould steel with quenched treatment
Diameter of shaft 70mm
Main frame 300 H steel
Forming steps

Up layer:11 stations

Down layer:13 stations
Productivity 20-25m/min
Hydraulic station power 5.5kw
Hydraulic pressure 10-12mpa
Appearance size 6500mm*1500mm*1500mm
Weight 4.5 tons
Hydraulic oil 40# hydraulic oil
Electric tension 380v 50 hz 3 phase or as your requirement
Cut mode Hydraulic forming after cutting off
Cutter materia Cr12 heat treatment
Electronic control system Plc, touch screen, encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Business terms:

Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.


5. FAQ(about our roll forming machine)

1. Q: How to visit our company:

A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station

(1hour), then we can pick up you to factory(40min).

Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).

2. Q: What should I provide if I want to customized machine?

A: U need provide profile drawing, material, thickness, voltage and your special requirements.

3. Q: What is the Warranty?

A: Within 12 mounts, all technicals are ready to serve you at any time.

4. Q: What can you do if the machine broken?

A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.

5. Q: If need technician to workshop to debug and teach, how to do?

A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.

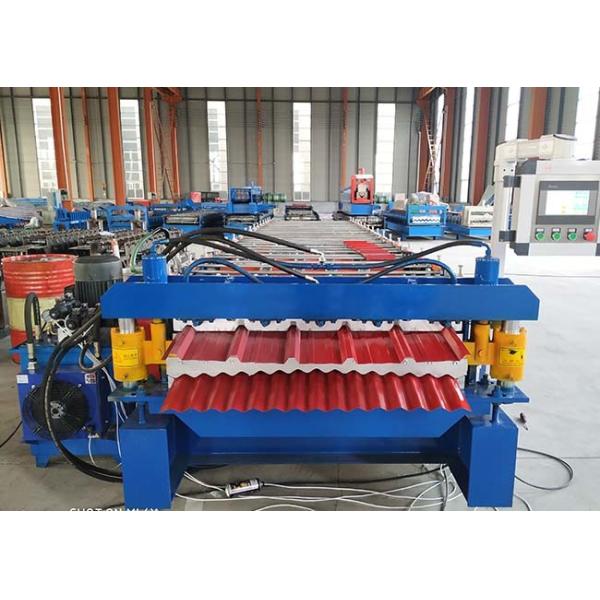

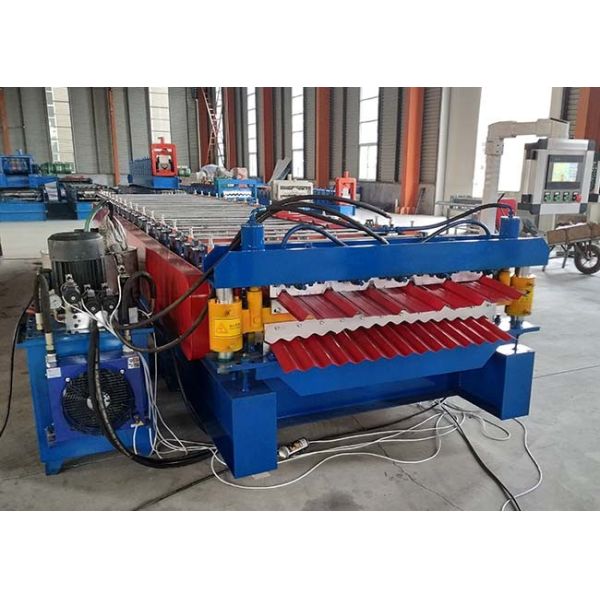

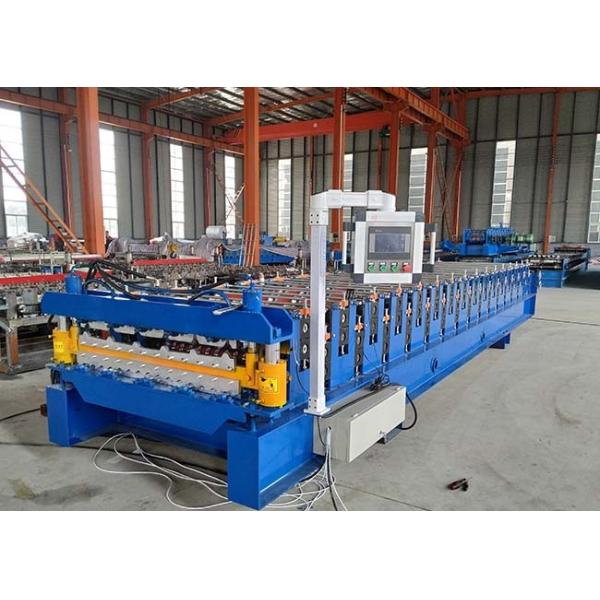

6. Roll forming machine pictures:

Hydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mmHydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mmHydraulic Driving Double Layer Roll Forming Machine Suitable Thickness 0.3-0.8mm
