Speed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# Steel
Speed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# Steel
Speed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# Steel
Speed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# Steel
Speed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# Steel
Speed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# Steel
Specifications
Brand Name :
shitong
Model Number :
D840-836
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
11000$
Payment Terms :
L/C, T/T
Supply Ability :
30 SETS PER MONT
Delivery Time :
30 DAYS
Packaging Details :
the main machine is nude
name :
double layer roll forming machine
Use :
Roof/wall
Weight :
6.5T
Dimension(l*w*h) :
7500*1700*1600Mm
Warranty :
2 Year
Description

Roll Former China Double Layer Metal Roofing Panel Roll Forming Machine

Quick Details

Warranty: 12 Months

Type: Tile Forming Machine

Production Capacity: 12-15m/min

Power(W): 5.5kw+3kw

Certification: ISO9001/CE/SGS

Condition: New

Tile Type: Steel

Voltage: AC 3-380V/415V/440V

Dimension(L*W*H): about 9000*1700*1600mm

Weight: about 6 Tons

Working material: galvanized sheet(GI),cold roll steel(CRC)

Thickness: 0.3-0.8mm

Yield strength: 245-550Mpa

Decoiler: Manual/Hydraulic for options

Housing: H400 beam

Side wall thickness: 18mm

Shaft: 75mm/85mm

Forming station: 15/20steps

Cutter material: Cr12Mov, Heat treatment

Output: about 12-15meters per minute

After-sales Service Provided: Engineers available to service machinery overseas

machine parameter:

Part details Item Name Specification
Manual uncoiler carrying capacity 5-8 tons
Stype Manual
Raw coil Coil material steel
Coil thickness 0.3-0.8 mm
Machine body Roller station 15 station
Roller material 45# steel
Shaft material 45# steel
Shaft diameter 75 mm
Machine weight About 6.5 tons
Machine size 5-7.5*1.3*1.3 m
Speed 8-12 m/min
Cutter Operate Hydraulic cutting
Blade material Cr12
Power Operate Chain transmission
Chain size 1 inch chain
Control system PLC brand Taiwan delta
Motor power 7.5 kw
Hydraulic pump power 3 kw
Voltage 380V 50Hz 3phase
Machine color As ur need
Machine language Chinese and English

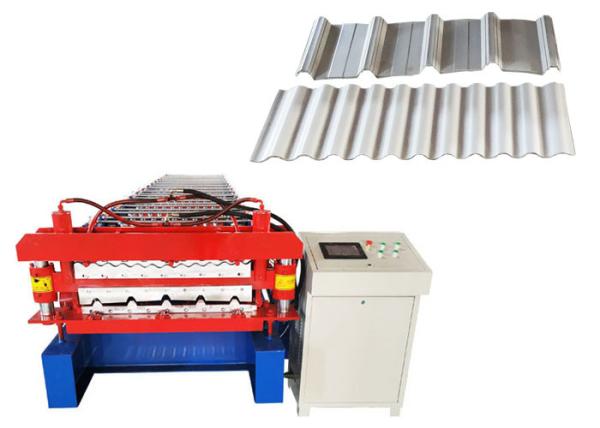

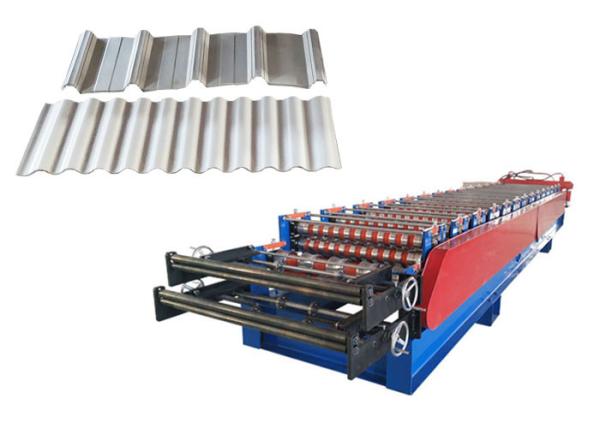

machine pictures:

Speed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# SteelSpeed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# Steel

Speed 8-12 M/Min Double Layer Roll Forming Machine Roller Material 45# Steel
