Waterproof color steel galzed tile roll forming machine with automatic working
1. Waterproof color steel galzed tile roll forming machine with automatic working
---- Final products is a steel roofing, with tile, looks very beautiful.
---- Fill the tile pieces, length and quantity in the hand touch screen, machine will running automatically.
---- We keep imporve our design in past 10 years, according the feed back from customer, our machine is proven.
---- Coopearte with famous industiral parts supplier, our machine provide good guarantee.
2. Waterproof color steel galzed tile roll forming machine with automatic working parameters
Raw material | |
Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
Processing thickness (mm) | 0.3-1.0mm or as your customized |
Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
Material of shafts | 45# steel |
Diameter of shafts | 70mm or as your customized |
Forming speed | 3-4 m/min or as your customized |
Under frame | 350 H-beam |
Sidewall | 16mm |
Connect bar | 25mm, zinc plated |
Forming steps | 10-18 or as your customized |
Control system | Delta PLC and Inverter |
Suitable power | 380V, 50 Hz, 3 phase or according to your need |
Drive mode | Chain and sprocket, chain size 1 inch |
Main motor | 3-5.5kw |
Hydraulic pump station | 3-5.5kw |
Cutting model | Hydraulic profile cutting |
Weight of the machine | 3.5 ton -6 ton |
Machine Components | ||
No. | Name | QTY |
1 | Manual uncoiler | 1 set |
2 | Feeding and leveling device | 1 set |
3 | Roll forming system | 1 set |
4 | Hydraulic punching and cutting | 1 set |
5 | Product support frame | 1 set |
6 | PLC Control System | 1 set |
3. roll forming machine company profiles
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Our advantage
1. We are a factory with nearly 20 years experiences on Roll Forming Machines;
2. We have our own research and development team with strong ability to solve all kinds of problems;
3. We have stable raw material suppliers to ensure the best quality and on time supplying with low cost;
4. We have more than 20 technicians that can go abroad for the after-sale service;
5. We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us;
6. We have Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. advanced production equipments to ensure the quality of each part and the best appearance of our machines;
7. Our machines have reached the International Inspection Standards;
8. We have got the ISO9001:2008 Certificate and CE Certificate;
9. We are always waiting to serve you 7 days a week and 24 hours a day.
5. FAQ
Does one machine can only produce one size?
Not exactly, it depends on the machine.
Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
You are trade company or factory?
We are Manufacturer.
Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

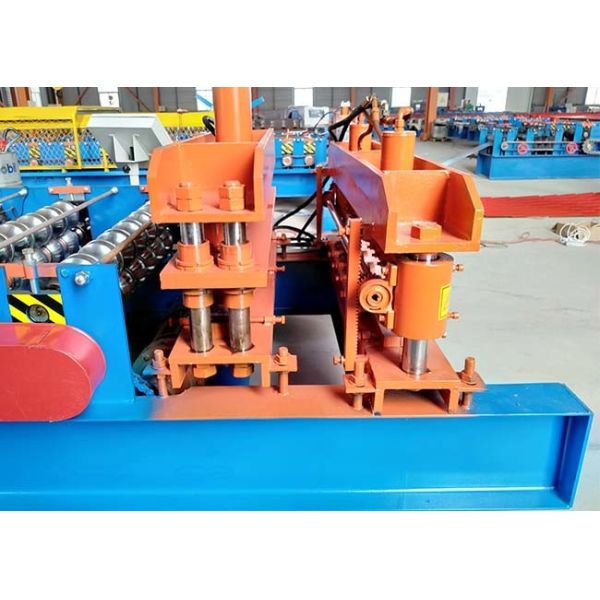

6. Roll forming machine pictures:
