Specifications
Brand Name :
ST
Model Number :
1060
Certification :
ISO CE
Place of Origin :
China
MOQ :
1set
Price :
contact me
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
30 days
Packaging Details :
nude
Warranty :
2 yesrs
Raw material :
PI/PPGI
Voltage :
380V/50HZ/3PH
Condition :
new
Product name :
metal sheet roll forming machine
Roller material :
45# Forged Steel
Description

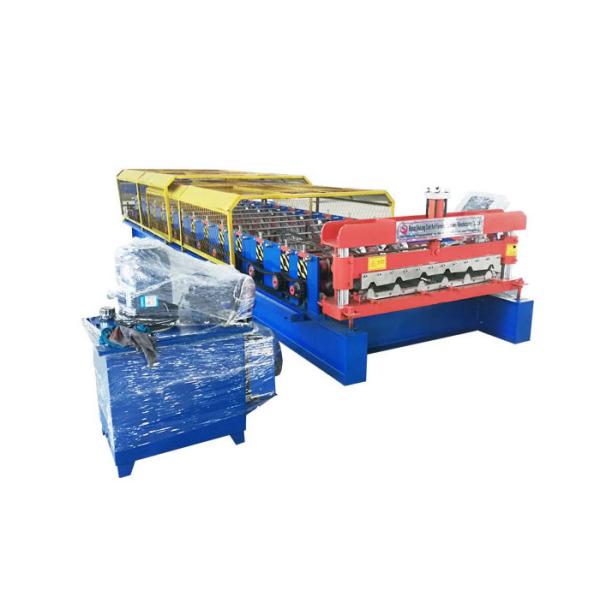

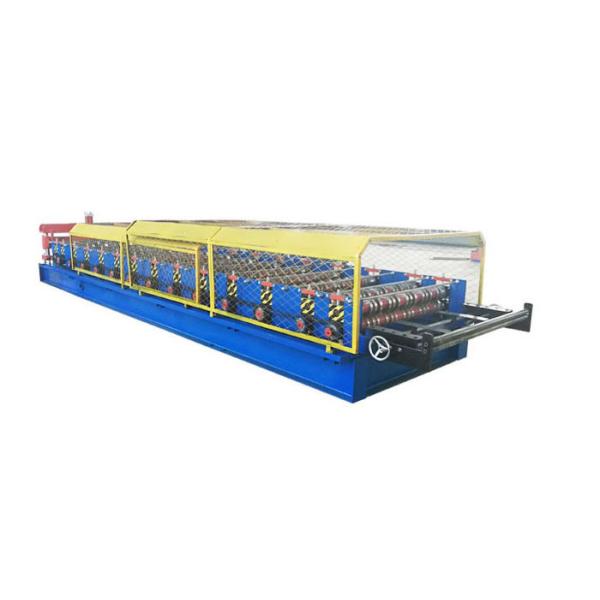

High quality single layer 6 ribs roof Sheet Metal Roll Forming Machines

Product Description
Building material steel roofing sheet roll forming machine machinery
Suitable raw material PPGI/PPGL/GI/GL Steel Coils
Thickness of coil sheet 0.3-0.8mm
Feeding Coil width 1250mm
Effective width 1060mm
Under frame 350H-beam
Diameter of Soild shaft 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm

Thickness of middle plate 16mm
Forming stations 16
Drive type By chain(1.0 inch) link bearing model 6210
Power of main motor 5.5kw with Cycloidal reducer, Lichao, Shanghai
Power of pump station 4kw, Lichao, Shanghai
Forming speed About 15-20m/min
Hydraulic cutting Controlled by PLC
PLC DELTA, TAIWAN / Mitsubishi, Japan
Material of cutting blade

Cr12Mov, quenching 58-62℃

High quality single layer 6 ribs roof Sheet Metal Roll Forming MachinesHigh quality single layer 6 ribs roof Sheet Metal Roll Forming MachinesHigh quality single layer 6 ribs roof Sheet Metal Roll Forming Machines

FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
