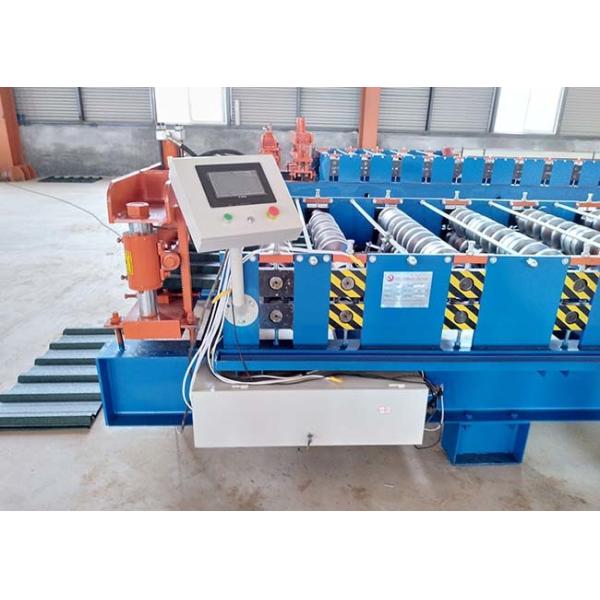

Steel Panel Roof Tile Roll Forming Machine
Steel Panel Roof Tile Roll Forming Machine
Steel Panel Roof Tile Roll Forming Machine
Steel Panel Roof Tile Roll Forming Machine
Steel Panel Roof Tile Roll Forming Machine
Steel Panel Roof Tile Roll Forming Machine
Specifications
Brand Name :
SHITONG
Model Number :
20-200-1000
Certification :
ISO,CE
Place of Origin :
Cangzhou, China
MOQ :
1 set
Price :
Contact us get the best price
Payment Terms :
L/C,T/T
Supply Ability :
20sets/month
Delivery Time :
40-60 days
Packaging Details :
Loading container
Machine Size: :
9.6*1.2*1.5m
Cutter type :
Dobule cylinder
Certificate :
GE, ISO
Drive method :
1" chain
Maching weight :
7000kg
Machine color :
Bule and orange
Description

Mesh protect steel panel roofing sheet roll forming machine with safty prevent


1. Mesh protect steel panel roofing sheet roll forming machine with safty prevent


---- We are a factory with nearly 20 years experiences on Roll Forming Machines.
---- We have more than 20 technicians that can go abroad for the after-sale service.

---- We have more than 100 kinds and models products for your choice, you can find the most kind of roll forming machines from us.
---- Our machines have reached the International Inspection Standards.

2. Mesh protect steel panel roofing sheet roll forming machine with safty prevent parameters

Raw material
material colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.3-0.8 mm
material expand width 914mm/1000mm/1200mm/1220mm/1250mm
Efficiency width 695mm/750mm/1000mm/1050mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
main frame 300 H steel
forming steps 15 stations
productivity 8-12m/min
hydraulic station power 5.5 KW
hydraulic pressure 10-12MPa
appearance size 7700mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating
Service life 10 years

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. FAQ (about our roll forming machine)

1) Does one machine can only produce one size?

Not exactly, it depends on the machine.

2) Do you have after sales support?

Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.

3) How to visit your company?

We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.

4) What can you do if the machine broken?

Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.

5) Can you be responsible for transport?

Yes, please tell us the destination port or address. we have rich experience in transport.

6) You are trade company or factory?

We are Manufacturer.

7) Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

5. Roll forming machine pictures:
Steel Panel Roof Tile Roll Forming MachineSteel Panel Roof Tile Roll Forming MachineSteel Panel Roof Tile Roll Forming Machine
