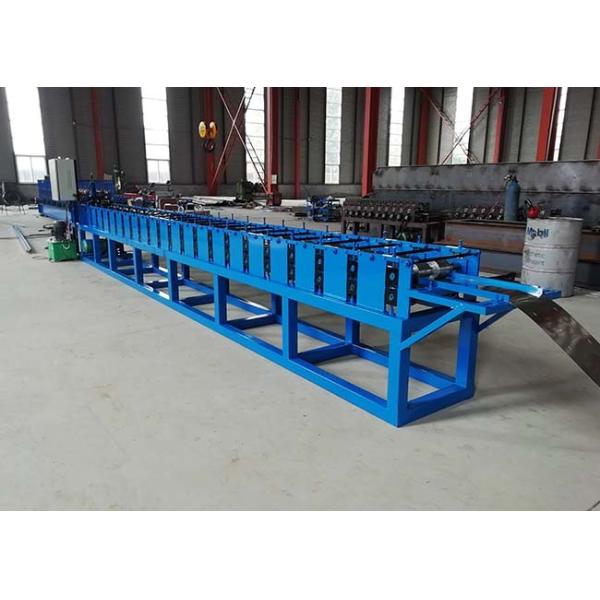

Light steel keel metal furring keel channel house structure roll forming machine with punching hole
Light steel keel metal furring keel channel house structure roll forming machine with punching hole
Light steel keel metal furring keel channel house structure roll forming machine with punching hole
Light steel keel metal furring keel channel house structure roll forming machine with punching hole
Light steel keel metal furring keel channel house structure roll forming machine with punching hole
Light steel keel metal furring keel channel house structure roll forming machine with punching hole
Specifications
Brand Name :
SHITONG
Model Number :
steel frame-85
Certification :
ISO,CE
Place of Origin :
Hebei, China (Mainland)
MOQ :
1 set
Price :
Contact us instantly
Payment Terms :
L/C,T/T
Supply Ability :
19 sets/month
Delivery Time :
40-55 days
Packaging Details :
1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Machine Size: :
5.8*1.2*1.5m
Machine weight :
3.5 tons
Usage: :
house structure
Production capacity :
20m/min
Warranty :
12 months
Cutting blade material :
Cr 12 High Grade Steel
Drive mode :
By chains
Description

Light steel keel metal furring keel channel house structure roll forming machine with punching hole


1. Instruction of this machine line

---- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.

---- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

---- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .

---- It is very easy to install the equipment and suitable for producing in the factory.

---- Low noise with high efficiency.


2. The roll forming machine parameters

Name Light steel keel metal furring keel channel house structure roll forming machine with punching hole
Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System PLC Inverter Encoder Touch Screen
Main Frame 400mm H-Beam
Total Power 7.5 kw
Power Supply 380V, 3-Phase,50Hz
Forming Speed 12-24m/min
Roll Station 14 stands
Decoiler capacity 3.5 tons
Roller Diameter 80mm
Effective Width 80-300mm
Feeding Thickness 0.3-1.2mm
Backboard Thickness 20mm
Cutter Standard GCr12
Roller Standard Gcr15#
Overall Size About 8500×1000×1400mm
Total Weight About 3.2 T
Custom According to customer's requirements

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufacture of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from SHITONG welcome anyone who are interested in our machines come to investigate and talk about cooperation.

4. FAQ (about our roll forming machine)

  1. Do you have after sales support?
    Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
  2. What can you do if the machine broken?
    Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself.
  3. Can you be responsible for transport?
    Yes, please tell us the destination port or address. we have rich experience in transport.
  4. Do you provide customized?
    Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.


5. Roll forming machine pictures:
Light steel keel metal furring keel channel house structure roll forming machine with punching holeLight steel keel metal furring keel channel house structure roll forming machine with punching holeLight steel keel metal furring keel channel house structure roll forming machine with punching hole
