C12 Cutter Roller Shutter Door Roll Forming Machine 115mm Width Steel Material
C12 Cutter Roller Shutter Door Roll Forming Machine 115mm Width Steel Material
C12 Cutter Roller Shutter Door Roll Forming Machine 115mm Width Steel Material
C12 Cutter Roller Shutter Door Roll Forming Machine 115mm Width Steel Material
C12 Cutter Roller Shutter Door Roll Forming Machine 115mm Width Steel Material
C12 Cutter Roller Shutter Door Roll Forming Machine 115mm Width Steel Material
Specifications
Brand Name :
SHITONG
Model Number :
80
Certification :
ISO,CE
Place of Origin :
Cangzhou, China
MOQ :
1 set
Price :
Contact us get the best price
Payment Terms :
L/C,T/T
Supply Ability :
20sets/month
Delivery Time :
40-60 days
Packaging Details :
Loading container
Machine Size: :
5.6*1.2*1.5m
Thickness of matrial :
0.5-1mm
Forming steps :
12 steps
Control system :
PCL program
Weight :
2.5 tons
name :
Roller Shutter Door Roll Forming Machine
Description

115mm width steel garage roller shutter door roll forming machine with C12 cutter


1. 115mm width steel garage roller shutter door roll forming machine with C12 cutter

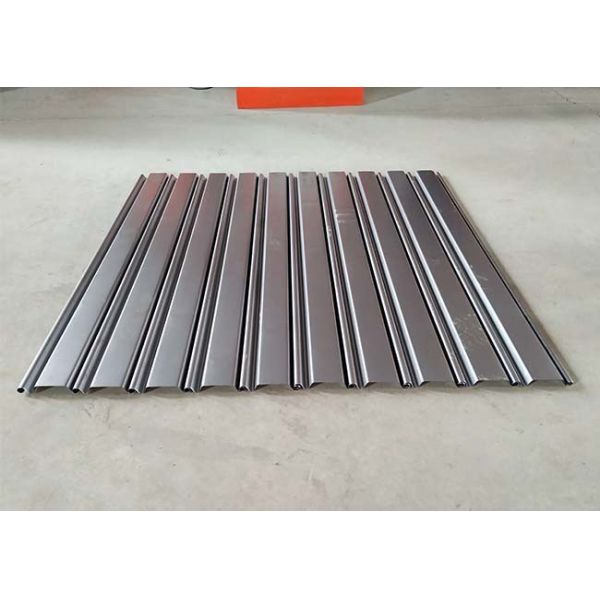

- The below machine is the roller shutter slat roll forming machine, customized for Algeria customer, this product is very popuar and widely used in family structure, building structure, shopping mall, office etc.

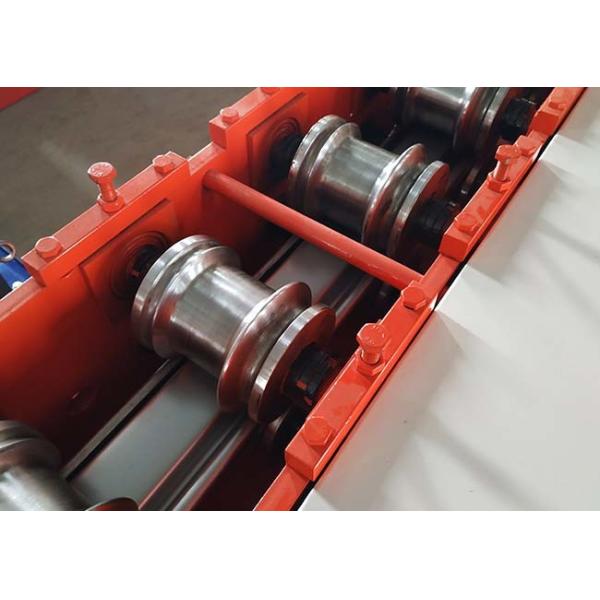

- The product feeding width is 122.5mm, and thickness 0.8-1.0mm galvanized steel plate, and the machine has 13 roller forming station.

- All the roller and cutter we use Cr12 steel with quenched treatment to make sure the the roller more stronger and not scratch the surface of produce, and the cutter more harder and long lived.

2. 115mm width steel garage roller shutter door roll forming machine with C12 cutter parameters

Suitable Material Colored Steel plate, Galvanized Board, Aluminum Plate
Thickness 0.3-0.8mm
Color As you like
Appearance size (About) 5.0*0.8*1.3m
Rows of rollers 12 rows
Rolling material 45# steel,roller surfaces polishing, hard plating
Diameter of shaft 38mm
Total power 4 KW
Productivity 15-20m/min
Cutter material Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter

Machine Components
No. Name QTY
1 Manual uncoiler 1 set
2 Feeding and leveling device 1 set
3 Roll forming system 1 set
4 Hydraulic punching and cutting 1 set
5 Product support frame 1 set
6 PLC Control System 1 set

3. roll forming machine company profiles

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

4. Package and Warranty:

1. Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.

2. This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.

3. All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.

4. When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.


5. FAQ

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

5. You are trade company or factory?

We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.


6. Roll forming machine pictures:
C12 Cutter Roller Shutter Door Roll Forming Machine 115mm Width Steel MaterialC12 Cutter Roller Shutter Door Roll Forming Machine 115mm Width Steel Material
