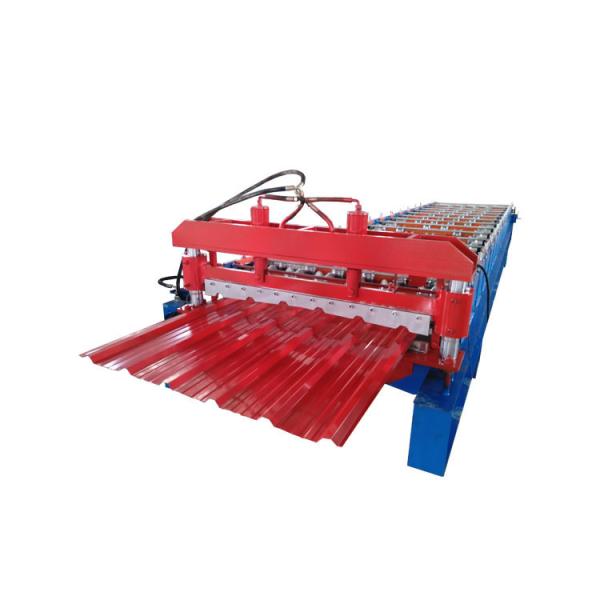

Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process
Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process
Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process
Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process
Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process
Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process
Specifications
Brand Name :
SHITONG
Model Number :
20-200-1000-1200
Certification :
ISO,CE
Place of Origin :
Cangzhou, China
MOQ :
1 set
Price :
Contact us
Payment Terms :
L/C,T/T
Supply Ability :
12 sets/month
Delivery Time :
48 working days
Packaging Details :
1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
Use :
roof and wall
Voltage :
as you want normally 380v 50hz 3 phases
Motor brand :
Lichao, Shanghai
Life Time :
10 Years
Driving method :
motor driving
Cutting blade material :
Cr 12 High Grade Steel
Advantage :
Full automatic . Low noice
rollers :
16 rollers
sizes :
7.5*1.5*1.51m
Description

automatic trapezoidal PPGL wall and roof forming machine

1.Warranty

Two years, and we will provide technical support for wholelife of the equipment.

After we receive the deposit, our designer will arrange the producing of the machine. After assembling, we will debug the machine and at the same time, we will make video for the clients and teach them how to operate the machine. Before shipping, the machine is tested in our factory. when the client gets the machine, he can according to our video to operate the machine. If some parts of machine broken within 2 years, we will give him the spare parts for free. If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect.

If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.

Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming ProcessTrapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming ProcessTrapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming ProcessTrapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process

2. The roll forming machine details:

coil width 1200mm
efficiency width 1000mm
Material Thickness 0.3—0.7mm
Rolling Speed 10-15m/min
Roller Stations 16stations
Roller material 45# steel, coated with chrome
Maim Motor Power 7.5kw

Hydraulic cutting Power

 4kw
Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-2mm
Electric Source

380V, 50HZ,3 phases

Also can satisfy customer’s require
Control System PLC with touch screen
Way Of Drive 1.2 inches single chain

3. Features of the roll forming machine production line

manuel decoiler-feeding table-roll forming machine- cutting part-discharge table

Trapezoidal PPGL Wall And Roofing Sheet Roll Forming Machine Cold Roll Forming Process

4. FAQ

Q1, If our country's voltage is different from yours, how to solve that?
A1, The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2, We bought your roll forming machine line, but we couldn't install and debug it?
A2, Don't worry about that, when finished the machine, we will send you the instruction book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.

5 company introduction:

Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. was established in 2001. Our company is a comprehensive enterprise integrating production, sales and services. We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

We are one of the best roof and wall roll forming machine manufacturers and suppliers in China. We have established a long term business relationship with more than 26 countries. Such as South America, North America, Asia, Southeast Asia,Africa, Europe , Australia and Middle East.We are willing to promote the economic and technical exchanges with the world and establish trade relations with friends from all over the world. We firmly believe that a true partnership is built on the basis of customers’ satisfaction.
