High Speed C Purlin Roll Forming Machine , CE Purlin Making Machine
High Speed C Purlin Roll Forming Machine , CE Purlin Making Machine
High Speed C Purlin Roll Forming Machine , CE Purlin Making Machine
High Speed C Purlin Roll Forming Machine , CE Purlin Making Machine
High Speed C Purlin Roll Forming Machine , CE Purlin Making Machine
High Speed C Purlin Roll Forming Machine , CE Purlin Making Machine
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD 21500/unit
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
30 days
Packaging Details :
nude
type :
purlin for building
machine power :
5.5kw
punching :
for holes
cutting :
hydraulic cutting
warranty :
1 years
capacity :
3 tons/hour
Description

High quality and speed C purlin roll forming machine with price

A.

1. Type: Automatic color steel sheet cold roll forming machine

2. Applicable material: Color steel

Working Flow:

3. Technical description

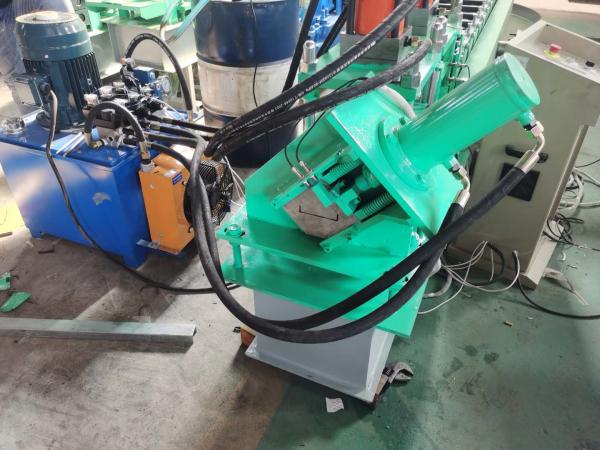

composition cutting device , main forming machine, PLC control system, hydraulic system
Controlling system PLC:Taiwan"Delta", Screen: domestic, Transducer:SanJing
Frame 350 H steel
Middle plate 18mm
Shaft diameter 95mm
Roller material

Ball bearing steel with 0.06mm chroming and high fire quenching
Main machine power 4kw
Hydraulic station power 3 kw
Drive way Gear transmission
Voltage 电压 380V,50HZ,3phase
Working speed 20-25m/min
Roller groups 15 groups
Adjust Model 80mm to 300 mm
Cutting style Automatic saw
Feed Material thickness 2mm-4mm
Weight 3.5tons

C ,Z,U purlin is widely use in steel working , the C purlin roll forming machine can product the C purlin in one line, the machine have high efficiency for product, about 3 tons per hour for the capacity

if you need machine contact us, we can design for you, such as your shape , thickness, material
