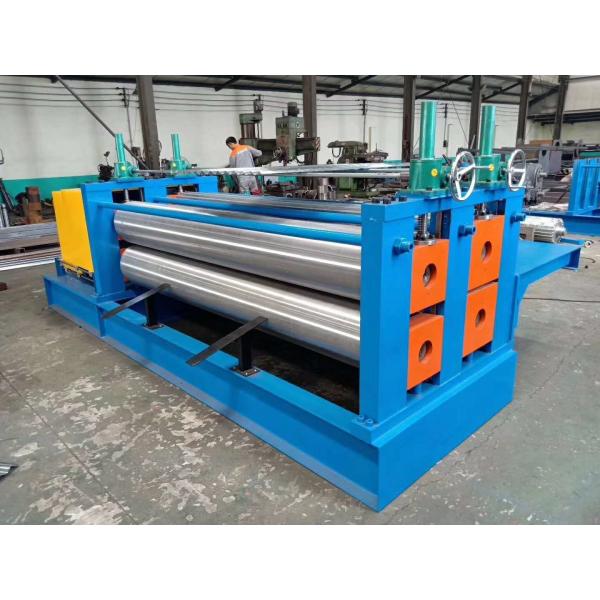

Wave Style Sheet Roll Forming Machine Galvanized Steel Material 60m / Min Working Speed
Wave Style Sheet Roll Forming Machine Galvanized Steel Material 60m / Min Working Speed
Wave Style Sheet Roll Forming Machine Galvanized Steel Material 60m / Min Working Speed
Wave Style Sheet Roll Forming Machine Galvanized Steel Material 60m / Min Working Speed
Wave Style Sheet Roll Forming Machine Galvanized Steel Material 60m / Min Working Speed
Wave Style Sheet Roll Forming Machine Galvanized Steel Material 60m / Min Working Speed
Specifications
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
57
Delivery Time :
38 days
Packaging Details :
nude
power :
13kw
material :
0.1mm-0.2mm
frame :
100mm
roller :
2steps
capacity :
50 pieces/min
warranty :
2 years
Description

1. Product Description

Colored Steel Sheet Roof Tile Corrugated Wave Panel Roll Forming Machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

2. Machine details

Brand: TuoMing
Model number: TMcorrugated waves
Voltage requirement: 380v50HZ,3PH
Working speed:8-10/min

3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

4. Main parameters

Item Specification
name wall and roof roll forming machine
Processing material GI,PPGI
Processing thickness 0.3-0.6 mm
Diameter of shaft Φ80mm
Electric tension as the customer's requirements
Roller High grade 45# forged steel (plated chrome plating on surface)
Chrome thickness 0.05mm
Processing precision +/- 1mm
Transmission By chain(1inch) link
Hydraulic cutting Two cylinders driving
PLC DELTA(TAIWAN)
Material of blades Cr 12, quenching 58-62℃
Switch CHNT
roller station depends on the profile drawing

5. package and shipping

The machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.

6. Machine Photo
