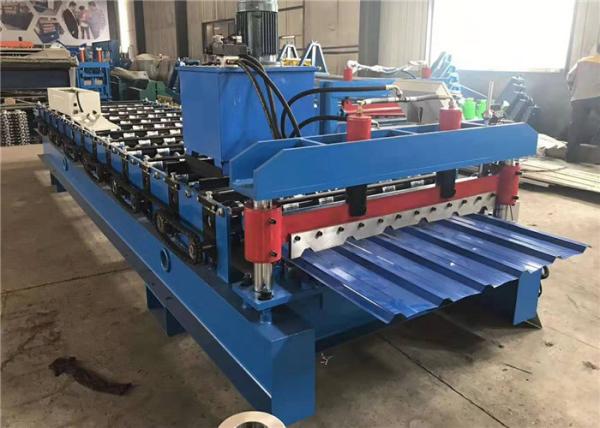

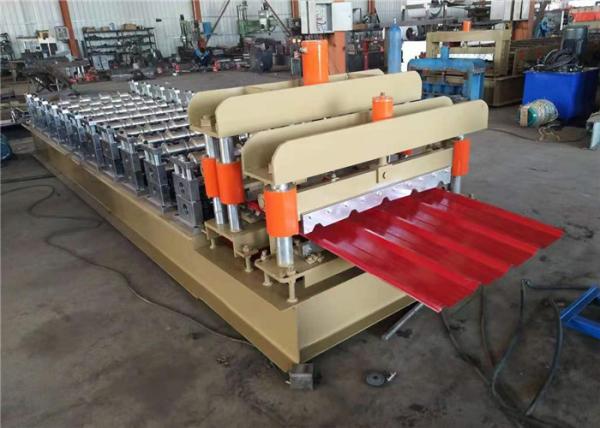

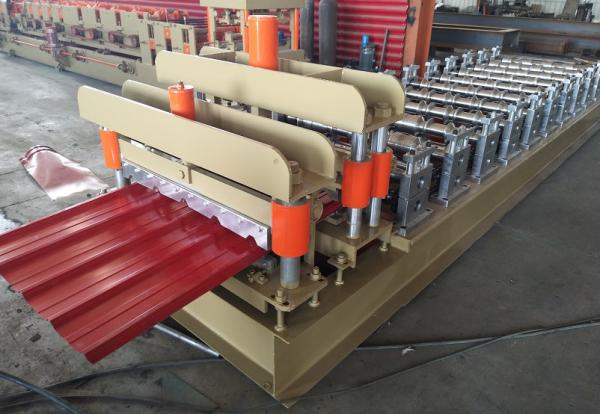

4Kw Metal Roofing Roll Former , Steel Sheet Metal Rolling Machine With 1 Inch Chain
4Kw Metal Roofing Roll Former , Steel Sheet Metal Rolling Machine With 1 Inch Chain
4Kw Metal Roofing Roll Former , Steel Sheet Metal Rolling Machine With 1 Inch Chain
4Kw Metal Roofing Roll Former , Steel Sheet Metal Rolling Machine With 1 Inch Chain
4Kw Metal Roofing Roll Former , Steel Sheet Metal Rolling Machine With 1 Inch Chain
4Kw Metal Roofing Roll Former , Steel Sheet Metal Rolling Machine With 1 Inch Chain
Specifications
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
45
Delivery Time :
19 days
Packaging Details :
nude
power :
4 kw
material :
steel
thickness :
0.3-0.7mm
roller :
14 steps
cutting :
hydraulic
chain :
1 inch
Description

Customer’s Details:

Drawing

1. Technical description

composition mechanical decoiler, pre-cutting device , main forming machine, PLC control system, hydraulic system , all siemens electric
Frame 300H steel ,Middle plate 16mm
Main machine power 4 kw
Hydraulic station power 3 kw
Voltage 380V,50HZ,3phase
Working speed 10-20m/min
Pass 13 passes ,all rollers is Cr12 mov
Shaft,chain 80mm(solid) 1inch
Material width 925mm
Effective width 762mm
Cutting mould Cr12 mov ,double oil cylinder, guide post
motor siemens

Thickness

 0.3-0.7mm
Roller material 45# steel
Dimension About 7.5m×1.65m×1.25m
Weight About 3.5T
