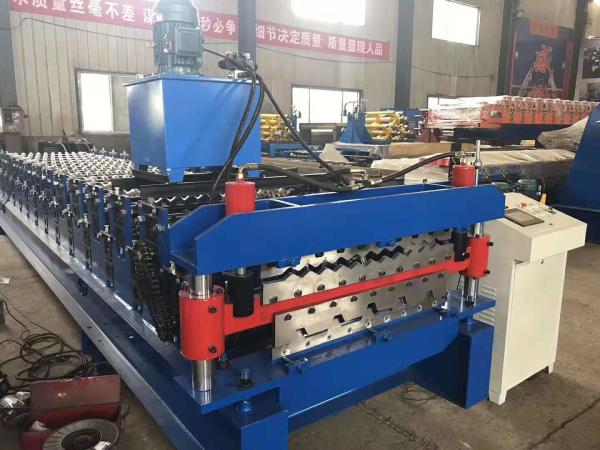

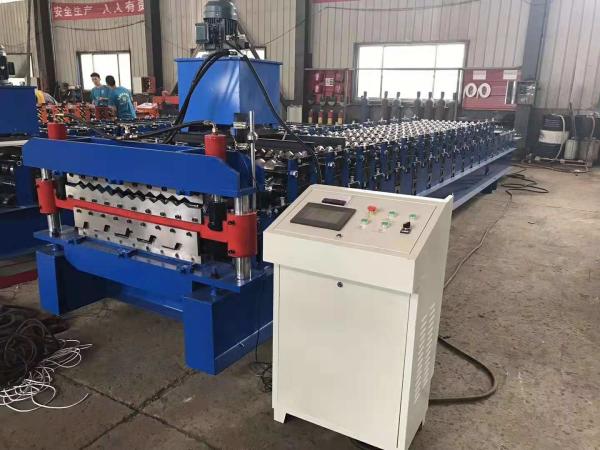

Trapezoid Style Corrugated Roll Former 8-15m / Min Working Speed 16 Steps Type
Trapezoid Style Corrugated Roll Former 8-15m / Min Working Speed 16 Steps Type
Trapezoid Style Corrugated Roll Former 8-15m / Min Working Speed 16 Steps Type
Trapezoid Style Corrugated Roll Former 8-15m / Min Working Speed 16 Steps Type
Specifications
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
122
Delivery Time :
30 Days
layer :
2 layers
up layer :
corrugated
low layer :
trapezoid
power :
5.5kw
capacity :
3 tons
use :
roof or wall sheet
Description
Detailed Product Description
Machine Name: 2 - 5m/Min Speed Glazed Tile Roll Forming Machine For Building Material Size: 7200*1350*1250mm
Weight: 5.8tons Control: PLC Computer With Different Language
Speed: 2-5m/min Material: GI,PPGI.AL

2 - 5m/Min Speed Glazed Tile Roll Forming Machine For Building Material

Glazed Tile are widely used in building: the steel-structured large scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.
So, just tell me your requirments please, we will do our best to meet your demands.

1. Main Material used

Material: Color steel ,galvanized steel or Aluminum
Feeding width:914mm
Material thickness:0.3-0.8mm
Yield strength:235-450mpa

2. Machine details

Brand: TuoMing
Model number: TM678
Voltage requirement: 380v60hz3p
Working speed:2-4m/min


3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4 Pressing System set 1
5 Cutting System set 1
6 Output Table set 1


4. Main parameters

Model number 2 - 5m/Min Speed Glazed Tile Roll Forming Machine For Building Material
Rolled material 0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet
and various steel plates
Effective width 736mm
Feeding width 914mm
Forming steps 14 stations
Roller 45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft 80mm
Main motor power 5.5 kw
Pump power 3 kw
Sprocket chain 1 inch
Drive type by chain
Cutting Blade Cr12, heat treatment 60-62°C
Frequency Converter It has the advantage of slowing down before cutting,
to ensure the length accuracy
(±1mm, far better than industrial standard ±3mm).
component 1 set of manual decoiler,
1 set of main roll forming machine,
1 set of computer control cabinet,
1 set of hydraulic System,
1 set of cutting mechanism,
1 set of counter,
1 set of output table
Payment terms cash,T/T,L/C.
Delivery time

30 working days

Why choose us TuoMing oof sheet roll forming machine

We are Professional

We have more than 20 years manufacturing experience in cold roll forming machinery.

Till now, we have exported to more than 70 countries and areas. The main market is South America, Africa, Middle East, Eastern Europe, Southeast Asia. We also take part in different exhibitions allover the world.
