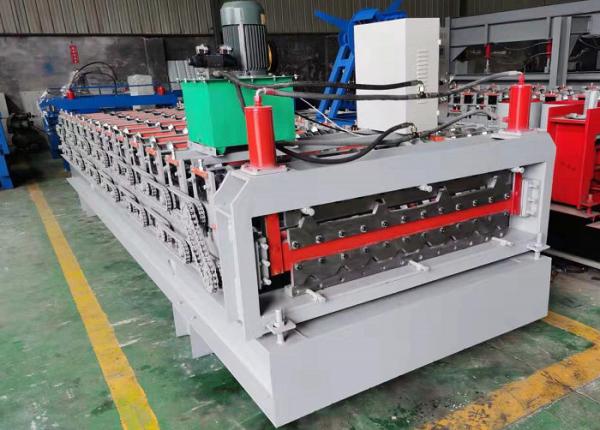

Chain Style Channel Roll Forming Machine Double Layer Type High Efficiency
Chain Style Channel Roll Forming Machine Double Layer Type High Efficiency
Specifications
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
27 days
Packaging Details :
nude
power :
5 kw
material :
steel coil
style :
ibr
size :
double layer
lifetime :
10 years
warranty :
1 year
Description

hydraulic bamboo glazed roof tile roll forming machine step tiles making machine

Application:

The glazed tile roll forming machine products beautiful appearance of smooth, paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, machine garages, hangars, stadiums, exhibition halls, theaters and other room surfaces and wall.

Raw material
material colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.2-0.8 mm
material expand width 1200mm
Efficiency width 960mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm or as your requirement
main frame 300 H steel
forming steps 11 stations
productivity 3-4m/min
hydraulic station power 3.7 KW
hydraulic pressure 10-12MPa
appearance size 6200mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment

we are professional roll forming machine manufacturer and supplier from China. metal sheet use for steel work and building widely!

with 20 years experience. our product include roof sheet/tile roll forming machine,deck machine,sandwich panel machine,

C/Z/U Purlin machine,highway guardrail machine,rain down pipe machine,shutter door machine,light steel keel machine,stud and track machine ,bending/cutting/slitting /curving machine. K-span roll forming machine

And so on . IBR roof machine can product metal roof for structure and building , nice , easy to work and save cost

if you need contact us ,we can provide you best design and product .

whatsApp/wechat: +8618232715995

Email:tuoming_jason@163.com
