Specifications
Place of Origin :
China
MOQ :
1ton. We also can accept sample order.
Price :
bargaining
Payment Terms :
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability :
5000 tons/month
Delivery Time :
Within 15-30 workdays after receiving deposit or L/C
Packaging Details :
According to the customers' requirement
Brand Name :
Chengjiu
Model Number :
304、201、316、316L、410、2205、2507、309
Nname :
Stainless Steel Forging17-4PH
Material :
17-4pH precipitate hardened type steel with copper
Heat treatment :
Annealing
Process :
Press forging
Description

Forging Square Stainless Steel 3mm 17 4ph Hot Rolled Forged Steel Shaft

1. Introduction

The deformation resistance of stainless steel at high temperature is relatively large, therefore, forging stainless steel needs to use a larger tonnage of equipment and wear resistant mold materials. The high temperature resistance of stainless steel is between nickel-based superalloy and general alloy structural steel, and the surface rises with the increase of the deformation degree, so too much deformation degree can not be used.

2. Chemical composition and mechanical Properties

Chemical composition
specifications C Mn Si Cr Ni P S Cu Nb+Ta
17-4PH(SUS630)UNS number S17400 ≤0.07 ≤1.00 ≤1.00 15.5~17.5 3.0~5.0 ≤0.04 ≤0.03 3.0~5.0 0.15~0.45

3. Mechanical properties
Tensile strength σB (MPa) : 480℃ aging,≥1310; 550 ℃ ageing, p 1060; 580 ℃ ageing, p 1000; 620 ℃ ageing, p. 930
Conditional yield strength σ0.2 (MPa) : 480℃ aging,≥1180; 550 ℃ ageing, p 1000; 580 ℃ ageing, p 865; 620 ℃ ageing, p. 725
Elongation δ5 (%) : aging at 480℃,≥10; 550 ℃ ageing, 12 or higher; 580 ℃ ageing, 13 or higher; 620 ℃ ageing, 16 or higher
Section shrinkage ψ (%) : 480℃ aging,≥40; 550 ℃ ageing, 45 or higher; 580 ℃ ageing, 45 or higher; 620 ℃ ageing, 50 or more
Hardness: solid solution,≤363HB and ≤38HRC; Aging at 480℃,≥375HB and ≥40HRC; Aged at 550℃,≥331HB and ≥35HRC; Aging at 580℃,≥302HB and ≥31HRC; Aged at 620℃,≥277HB and ≥28HRC

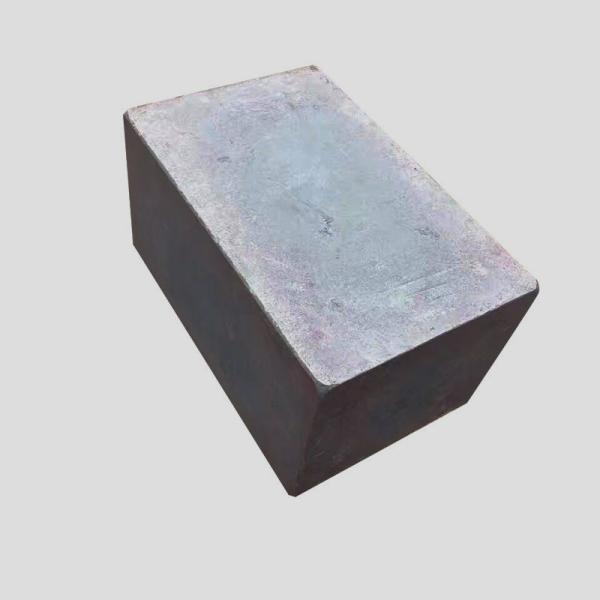

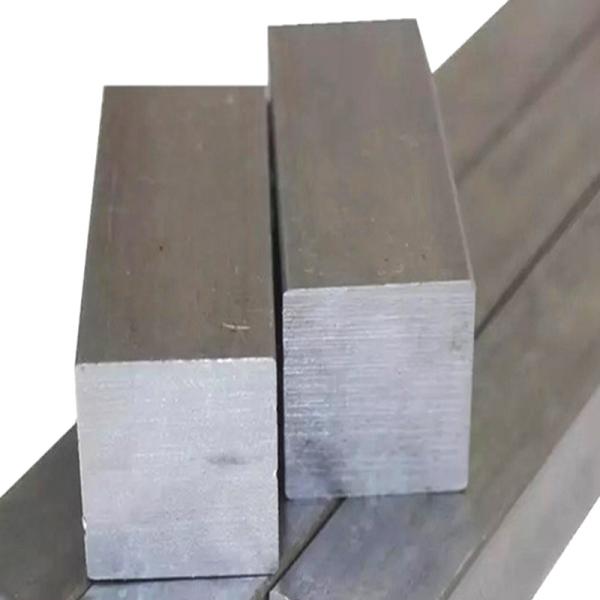

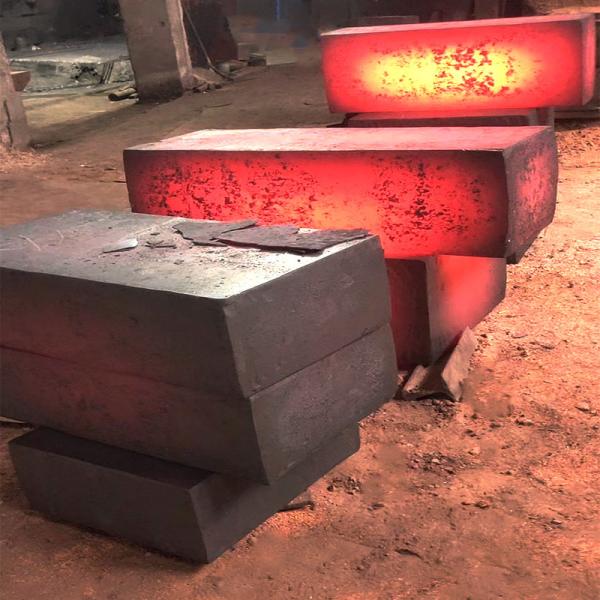

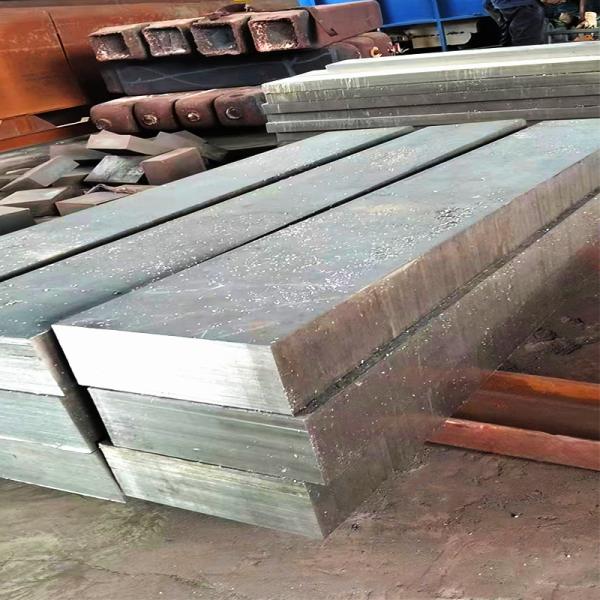

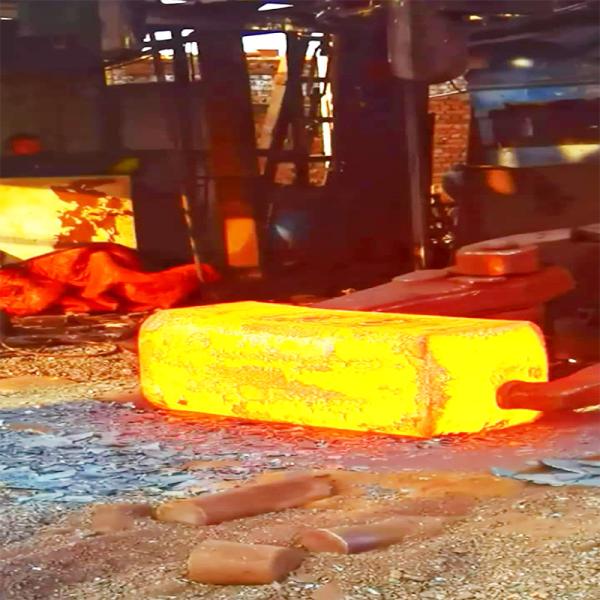

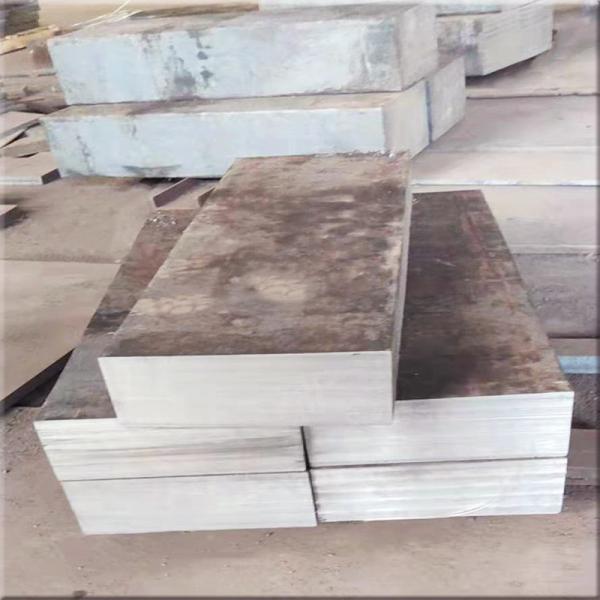

4. Product Show

Forging Square Stainless Steel 3mm 17 4ph Hot Rolled Forged Steel ShaftForging Square Stainless Steel 3mm 17 4ph Hot Rolled Forged Steel Shaft
