Factory Price 1' 2' SCH10S Stainless Steel Tube 304 304L Stainless Steel Pipes For Building

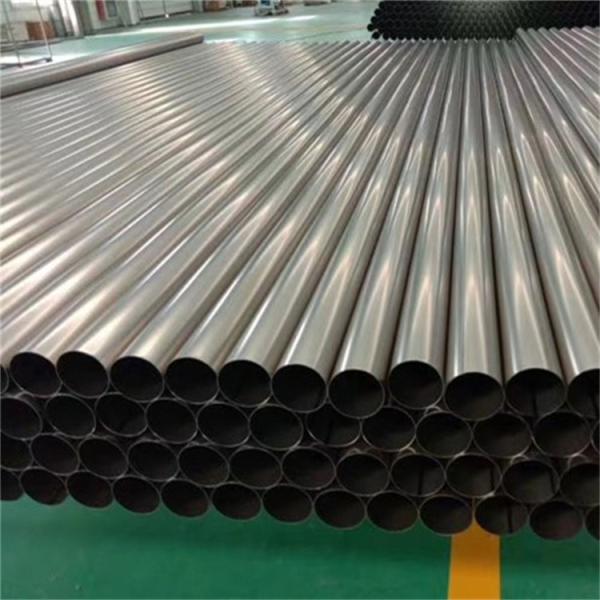

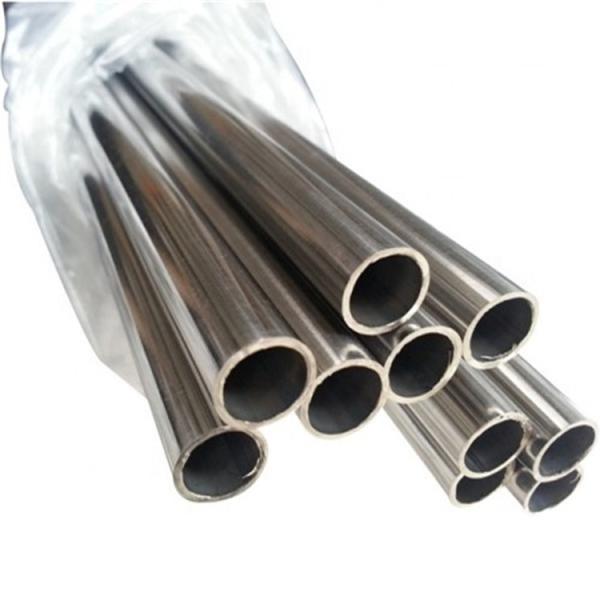

Stainless Steel Welded Pipe
Stainless steel welded pipe is a steel pipe made of steel after being crimped and formed by a unit and a mold.
Stainless steel welded pipe is divided into straight seam welded pipe and spiral welded pipe.
The production process of welded steel pipes is simple, the production efficiency is high, and there are many varieties and specifications.
1.Stainless steel tubes are mainly: 201/202/301/302/303/304/304L/3168/316L/430 stainless steel tubes,
2.Surface technology:2B,NO.4,HL,BA,8K,Color coating,etched,embossed Or customized;
Stainless steel pipes can be classified into round pipes and special-shaped pipes according to the outer diameter of the steel
pipes, and round steel pipes are widely used. But there are also some square, rectangular, semicircular, hexagonal, equilateral
triangle, octagonal and other special-shaped steel pipes.
The outer diameter of the stainless steel pipe currently produced is 0.1-4500mm, and the wall thickness is 0.01-250mm
Stainless steel coils of various specifications can be customized according to customer requirements
What should you not use on stainless steel?
7 Cleaning Products You Should Never Use on Stainless Steel
- Harsh abrasives.
- Scouring powders.
- Steel wool.
- Bleach and other chlorine products.
- Glass cleaners that contain ammonia, such as Windex.
- Tap water, especially if yours tends to be hard water (use clean distilled or filtered H2O instead)
- Oven cleaners.
| Product Name | Stainless Steel Welded Pipe |
| Category | Stainless steel pipe:
Seamless and Welded Tubes (By Production Method)
Round and shaped tubes (by cross-sectional shape)
Sectional and variable section pipes (by profile shape)
Plain and thread tubes (by tube end state) |
| SIZE | Outer Diameter:0.1-4500mm Wall Thickness:0.01-250mm LENGTH:Customized according to your requirements |
| Material | 201.202.301.302.304.304L.304J1.310S.309S.316.316L.321.347,329A.2205.2507.2520.409L.410S.430.410.440.444.420J1.420J2.904L etc. Or Customized |
| Surface Finish | NO.2B,NO.2D,NO.3,NO.4,HL,BA,8K,Color coating,frosted,Satin,Gold Titanium Or customized; |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| End/Edge | Plain Mill Beveling |
| Application | Widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components, and also commonly used as furniture and kitchenware, etc. |
| Package | Standard export sea-worthy packing or customized |
| Chemical Composition |
| ASTM | JIS | DIN/BS/NF EN | GB/T | ISO | C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr |
S20100
201 | SUS201 | X12CrMnNiN17-7-5
1.4372 | 12Cr17Mn6Ni5N
(1Cr17Mn6Ni5N) | X12CrMnNiN17-7-5 | 0.15 | 1 | 5.50-7.50 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
S20200
202 | SUS202 | X12CrMnNi18-9-5
1.4373 | 12Cr18Mn9Ni5N
(1Cr18Mn8Ni5N) | ----------- | 0.15 | 1 | 7.50-10.00 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
S30100
301 | SUS301 | X5CrNi17-7
1.4319 | 12Cr17Ni7
(1Cr17Ni7) | X5CrNi17-7 | 0.15 | 1 | 2 | 0.045 | 0.03 | 6.00-8.00 | 16.00-18.00 |
S30400
304 | SUS304 | X5CrNi18-10
1.4301 | 06Cr19Ni10
(0Cr18Ni9) | X5CrNi18-9 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
S30403
304L | SUS304L | X2CrNi19-11
1.4306 | 022Cr19Ni10
(00Cr19Ni10) | X2CrNi19-11 | 0.03 | 1 | 2 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
S30900
309 | SUH309 | X12CrNi23-13
1.4833 | 16Cr23Ni13
(2Cr23Ni13) | X12CrNi23-13 | 0.2 | 1 | 2 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
S30908
309S | SUS309S | X12CrNi23-13
1.4833 | 06Cr23Ni13
(0Cr23Ni13) | X12CrNi23-13 | 0.08 | 1 | 2 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
S31000
310 | SUH310 | X15CrNiSi25-21
1.4841 | 20Cr25Ni20
(2Cr25Ni20) | X8CrNi25-21 | 0.25 | 1 | 2 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
S31008
310S | SUS310S | X8CrNi25-21
1.4845 | 06Cr25Ni20
(0Cr25Ni20) | X8CrNi25-21 | 0.08 | 1 | 2 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
S31600
316 | SUS316 | X5CrNiMo17-12-2
1.4401 | 06Cr17Ni12Mo2
(0Cr17Ni12Mo2) | X5CrNiMo17-12-2 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
S31603
316L | SUS316L | X2CrNiMo17-12-2
1.4404 | 022Cr17Ni12Mo2
(00Cr17Ni14Mo2) | X2CrNiMo17-12-2 | 0.03 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
S31635
316Ti | SUS316Ti | X6CrNiMoTi17-12-2
1.4571 | 06Cr17Ni12Mo2Ti
(0Cr18Ni12Mo3Ti) | X6CrNiMoTi17-12-2 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
S32100
321 | SUS321 | X6CrNiTi18-10
1.4541 | 06Cr18Ni11Ti
(0Cr18Ni10Ti) | X6CrNiTi18-10 | 0.08 | 1 | 2 | 0.045 | 0.03 | 9.00-12.00 | 17.00-19.00 |
1.Good Quality and Complete Specifications
The cutting is flat and smooth,advanced technology reliable quality complete specifications. 2.Accurate Tolerance
Advanced machine production,exquisite workmanship,accurate thickness strict testing,each product is produced in strict accordance with the requirements.
3.Support Customization
There are many product styles, complete specifications,support customization.
4.Professional Packaging
Single box packaging.standard export sea-worthy packing and standard carton or according to customers demand for steel customized.
Certificates
